230mm Concrete Puddle Flange Recess Kit
- Regular price
- $700.00 AUD
- Sale price
- $700.00 AUD
- Regular price
-
$730.00 AUD
Shipping calculated at checkout.
Prices shown exclusive of GST.
Only 1 left — order now!
- Dual discs form the 150mm and 230mm recess diameters in one operation.
- A typical concrete recess can be completed in under three minutes.
- The 280mm shroud captures dust at the source when suitable extraction is connected and running.
Couldn't load pickup availability
Overview & Features
- - Designed for dry recessing in new or cured concrete slabs only.
- - Compatible with standard PVC puddle flanges, including the Allproof Leak Control flange.
- - Typical consumable disc life is approximately 7 to 15 recesses, depending on concrete hardness, aggregate and operator technique.
- - Available as a kit only or bundled with a Makita 230mm grinder.
Application Guide
- 1. Confirm the substrate is concrete, inspect the work area and ensure the drainage pipe is secure and stable.
- 2. Mark the drain centre and confirm the selected flange diameter and thickness before setting the recess depth.

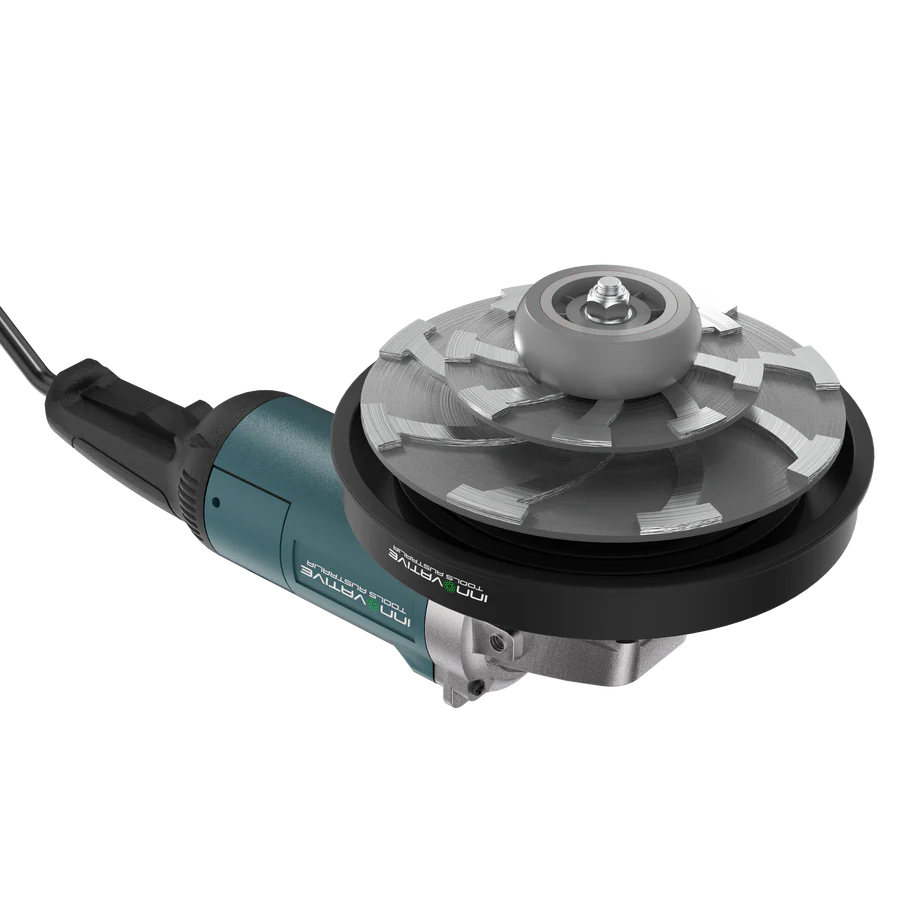

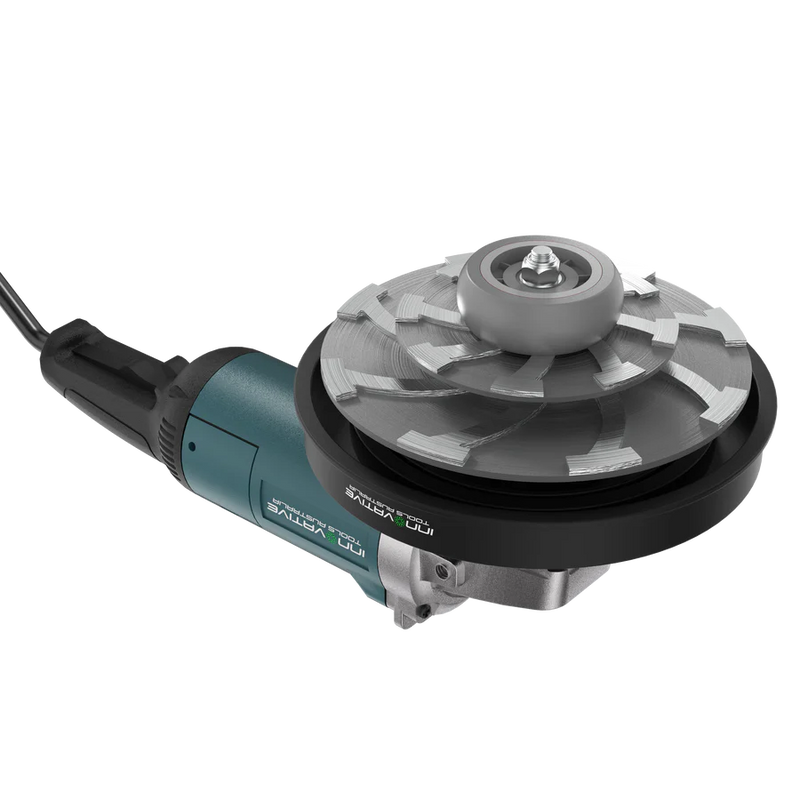

- 3. Fit the kit to a compatible 230mm (9 inch) M14 grinder and check that the discs and dust shroud are secured correctly.
- 4. Connect the shroud to an M-class or better construction dust extractor; H-class extraction is preferred.
- 5. Use a fit-tested P2 respirator, eye and hearing protection and a 30mA RCD. Do not use the kit for wet cutting with a mains-powered grinder.
- 6. Start the extractor, place the assembly flat on the slab and apply steady, even pressure. Allow the diamond discs to work without forcing the grinder.

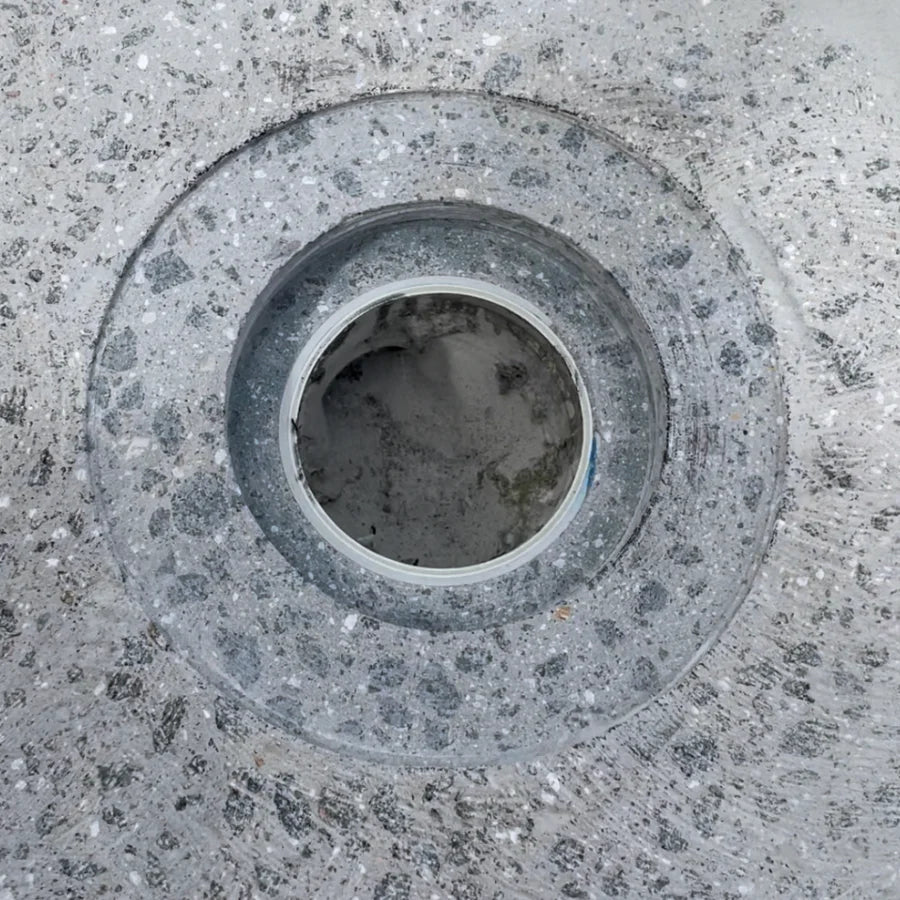

- 7. Cut the 150mm and 230mm recess diameters in one controlled pass to the depth required for the selected flange.
- 8. Switch off and isolate the grinder, then vacuum the recess thoroughly. Do not dry sweep or use compressed air.

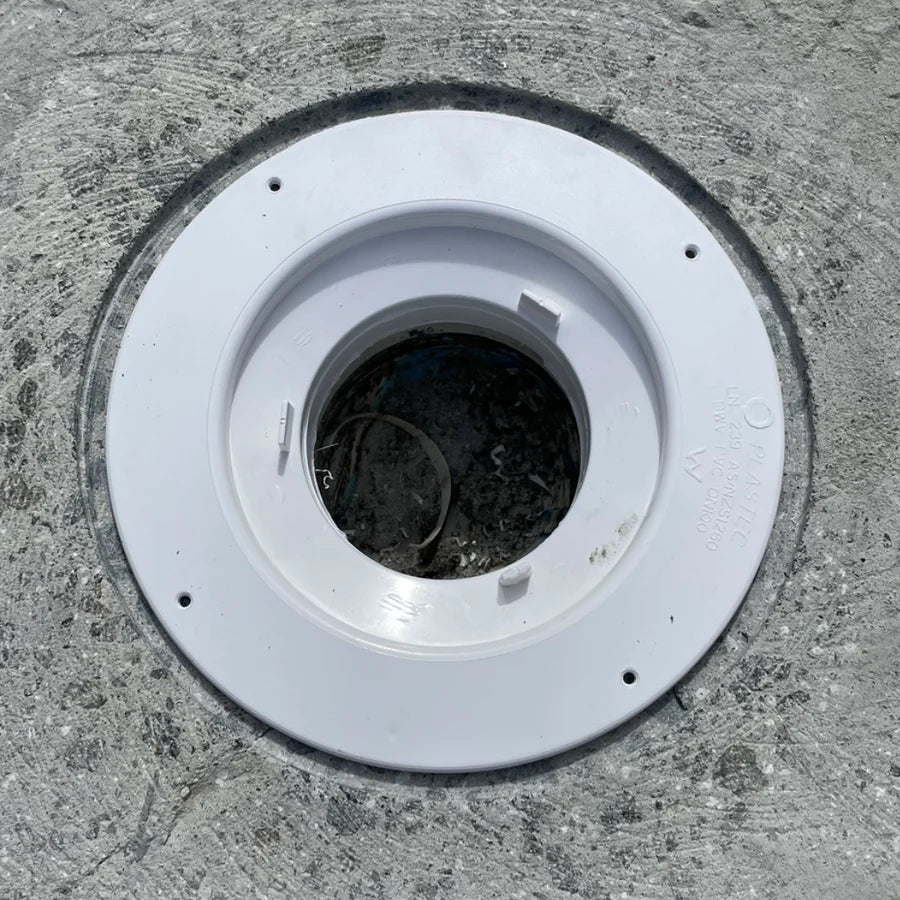

- 9. Test-fit the puddle flange and confirm it sits flush without rocking or leaving proud edges.
- 10. Bond and seal the flange and terminate the waterproofing membrane strictly in accordance with the flange, bonding product and membrane manufacturers' requirements.
Specifications & Standards

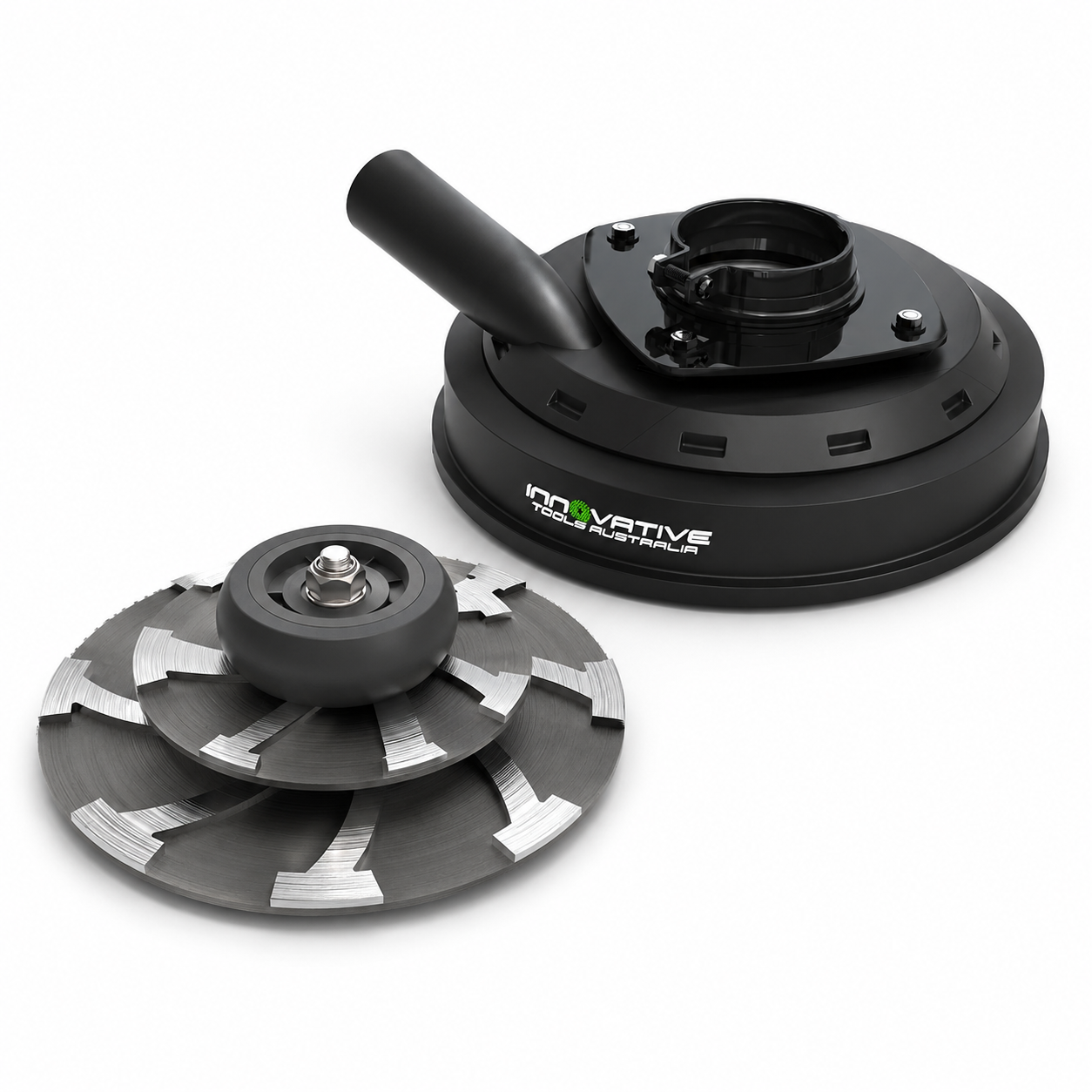

- Tool type: Dual-disc concrete puddle flange recessing kit
- Cut diameters: 150mm and 230mm simultaneously

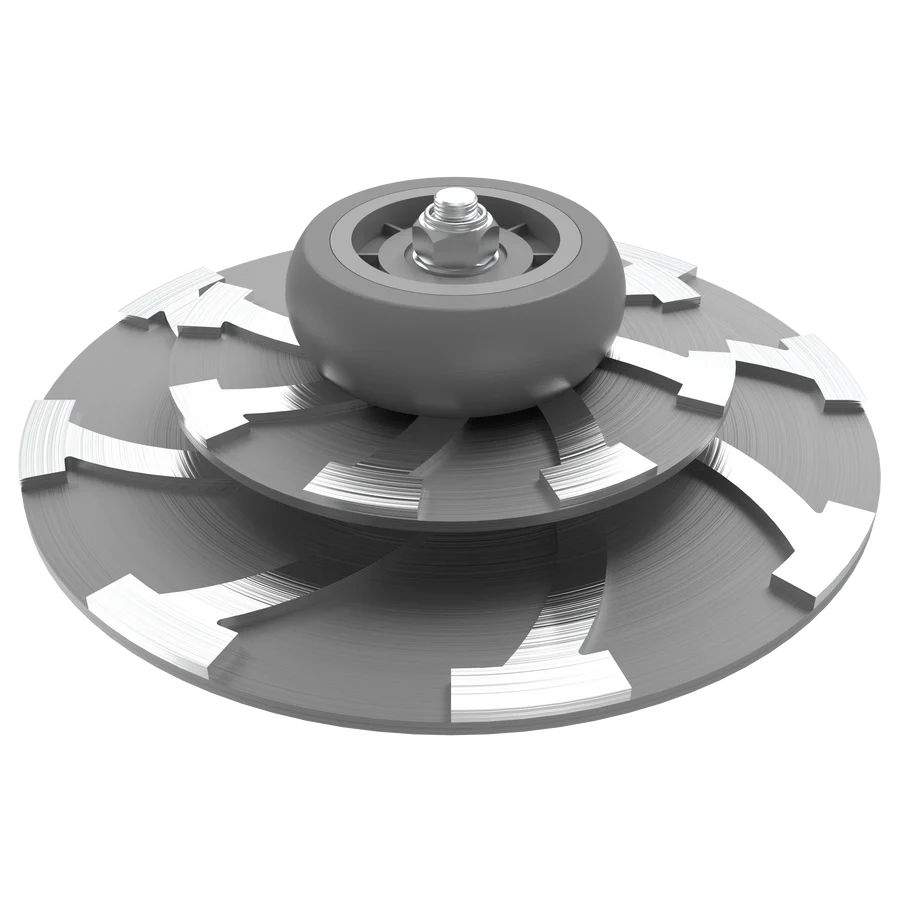

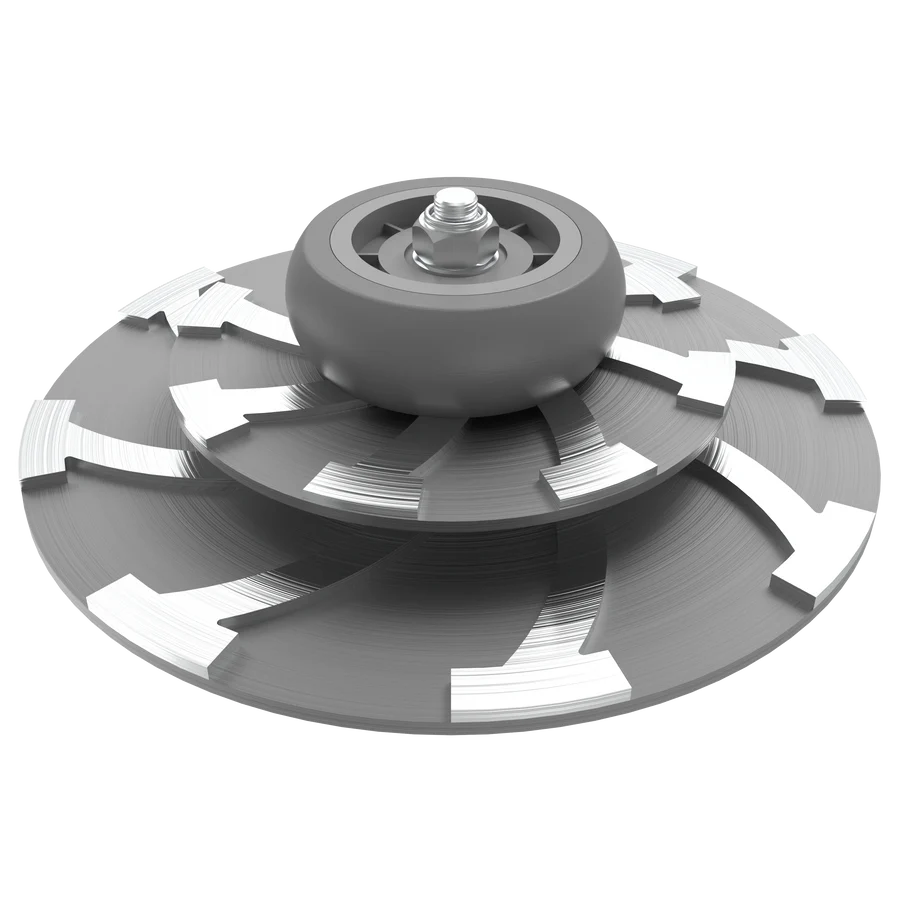

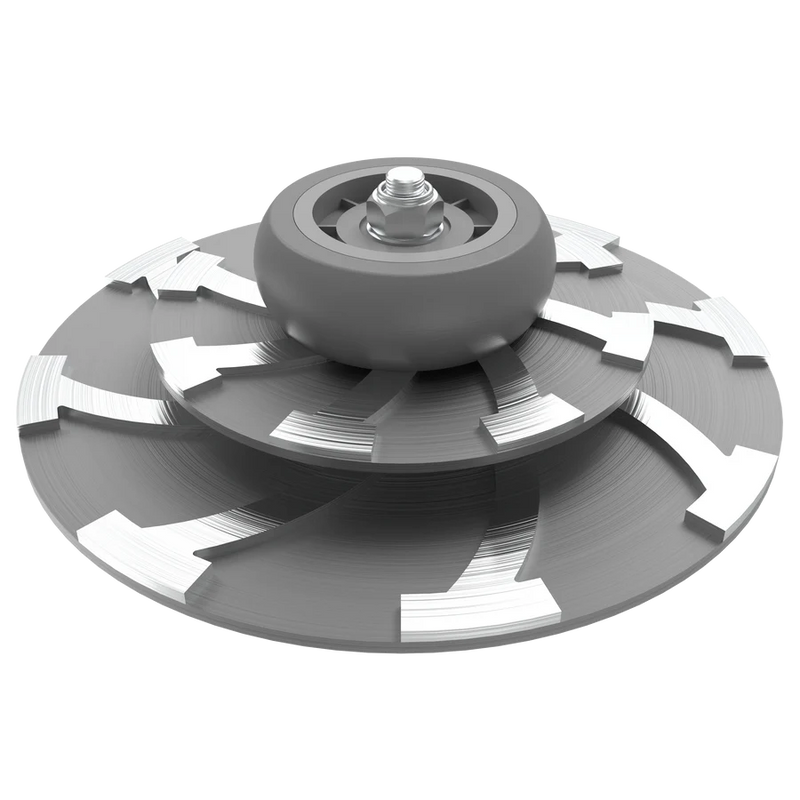

- Outer recess disc: 230mm premium diamond segments
- Inner disc: 150mm self-centring diamond disc
- Dust shroud: 280mm vacuum-connected shroud
- Grinder compatibility: Standard 230mm (9 inch) angle grinder
- Mounting thread: M14 spindle
- Process: Dry grinding with on-tool extraction
- Suitable substrate: New or cured concrete slabs
- Compatible flanges: Standard PVC puddle flanges, including Allproof Leak Control
- Typical time per recess: Under 3 minutes
- Approximate disc life: 7 to 15 recesses, subject to concrete and use conditions
Applications
Bathroom
Shower
Laundry
Balcony
Podium
Internal Wet Areas
External Waterproofing
Technical Specifications
Key technical properties of this product. Refer to the Technical Data Sheet for complete installation and performance information.
| Classification | Professional dual-disc concrete recessing kit |
|---|---|
| Suitable Substrates | New or cured concrete slabs |
| Internal / External Use | Internal and external concrete wet-area floors |
| Approximate Disc Life | 7 to 15 recesses, depending on concrete hardness, aggregate and operator technique |
