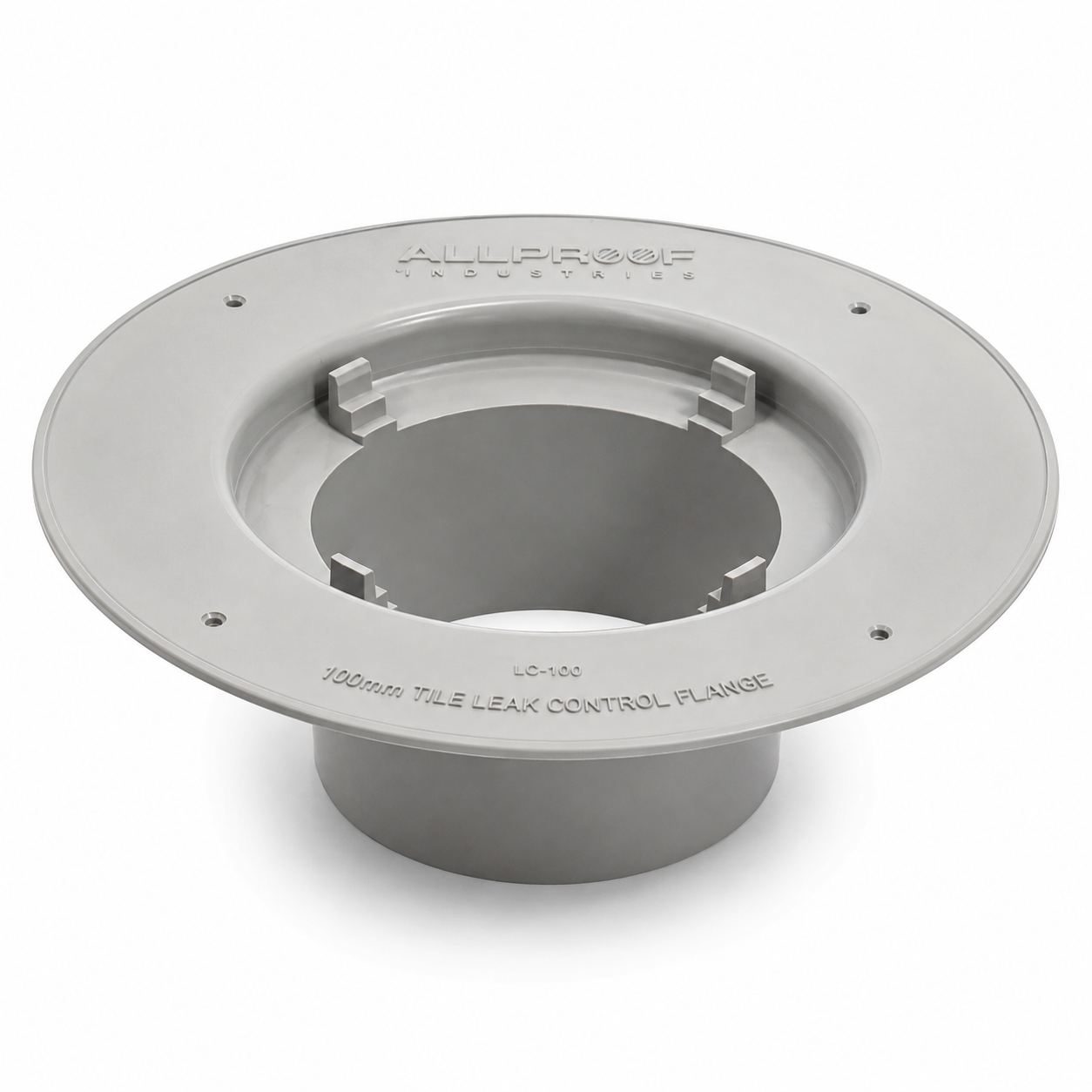

Allproof 100mm Leak Control Puddle Flange
- Regular price
- $10.95 AUD
- Sale price
- $10.95 AUD
- Regular price
-
Shipping calculated at checkout.
Prices shown exclusive of GST.
- The 218mm flange provides a broad termination surface for compatible waterproofing membranes.
- The 100mm PVC connection integrates the waterproofing detail with the DWV drainage system.
- Locating lugs assist grate positioning while preserving a path for sub-tile drainage.
Couldn't load pickup availability
Overview & Features
- - Construction cap is included to protect the opening during building work.
- - Integrated locating lugs support compatible Allproof floor waste grate spigots.
- - Locating-lug geometry maintains a path for sub-tile moisture to discharge into the DWV system.
- - Manufacturer installation details are available for tiled concrete and tiled timber floors.
- - Prepare the PVC bonding surface strictly in accordance with the selected membrane manufacturer's requirements.
Application Guide
- 1. Confirm that model LC100C, compatible 100mm PVC drainage and the selected Allproof floor waste grate suit the project detail.
- 2. Set out the penetration and prepare the floor substrate so the 218mm flange can be recessed and finish flush with the membrane substrate.
- 3. Dry-fit the flange and verify pipe alignment, finished floor build-up, grate position and drainage falls before permanent installation.
- 4. Connect and secure the flange to the 100mm PVC drainage system in accordance with the plumbing design and applicable product installation requirements. Do not distort the flange.
- 5. Retain the supplied construction cap while surrounding building work is completed to prevent debris entering the drainage system.
- 6. Before waterproofing, ensure the flange is secure, clean, dry and free from dust, contaminants and surface damage.
- 7. Prepare or prime the PVC membrane-bonding surface only as specified by the selected waterproofing membrane manufacturer.
- 8. Apply the compatible waterproofing membrane continuously onto the flange bonding area. Install any required bond breaker or reinforcement strictly in accordance with the membrane system specification.
- 9. Keep the central opening, locating lugs and sub-tile drainage path free from membrane build-up, adhesive, screed and debris.
- 10. Fit the compatible grate assembly and confirm the finished tiled surface drains correctly without obstructing subsurface drainage.
Specifications & Standards
- Manufacturer: Allproof Industries
- Model / MPN: LC100C
- Product type: 100mm tile leak control flange
- Material: Injection-moulded high-grade PVC
- Nominal pipe connection: 100mm PVC
- Outer flange diameter: 218mm
- Upper opening diameter: 118mm
- Internal bore diameter: 99mm
- Spigot outside diameter: 105mm
- Body / collar diameter: 137mm
- Spigot length: 51mm
- Flange plate thickness: 3mm
- Recess shoulder depth: 13mm
- Fixing holes: Four, approximately 3mm diameter
- Locating lug width: 10mm
- Construction cap: Included
- Dimensions are taken from the supplied LC100C manufacturer drawing and are stated in millimetres.
Product Documents
Applications
Bathroom
Shower
Laundry
Internal Wet Areas
Under Tile
Technical Specifications
Key technical properties of this product. Refer to the Technical Data Sheet for complete installation and performance information.
| Classification | 100mm PVC tile leak control puddle flange |
|---|---|
| Suitable Substrates | Tiled concrete and timber floor systems |
| Internal / External Use | Internal tiled wet areas; assess external use against the project drainage and waterproofing design |
| Construction Cap | Included |
| Fixing Holes | Four holes, approximately 3mm diameter |
