Deep Drain Aluminium Balcony Edge Profile

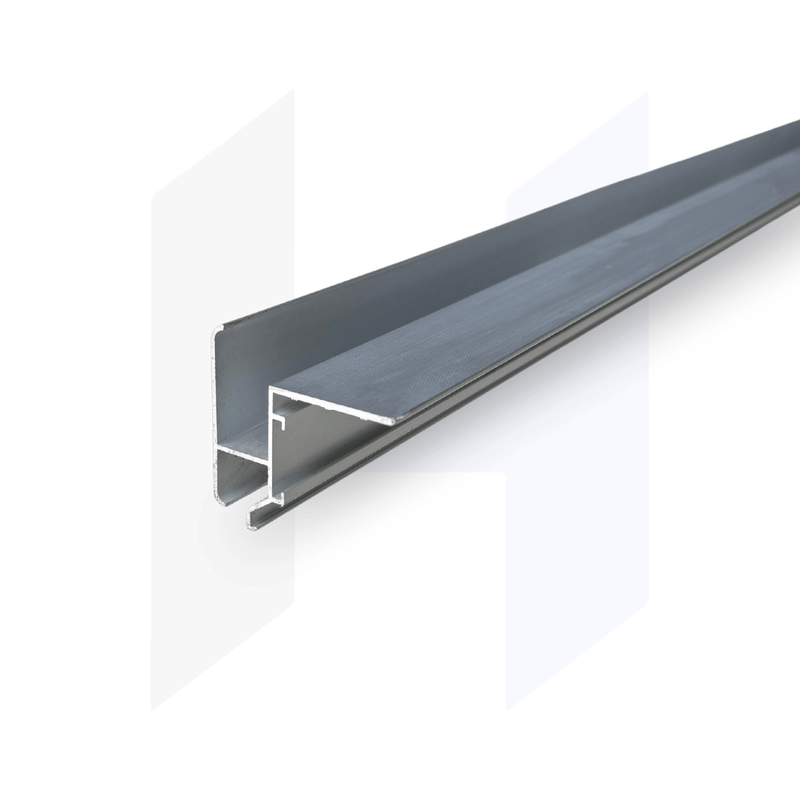

The H2O Balcony Edge Profile is a one-piece extruded aluminium edge solution featuring a 65mm vertical face, designed to provide a clean, compliant termination at tiled balcony perimeters. The profile integrates screed support, waterproofing membrane termination, and a formed drip edge to manage water runoff and protect exposed slab edges from moisture tracking and façade staining.

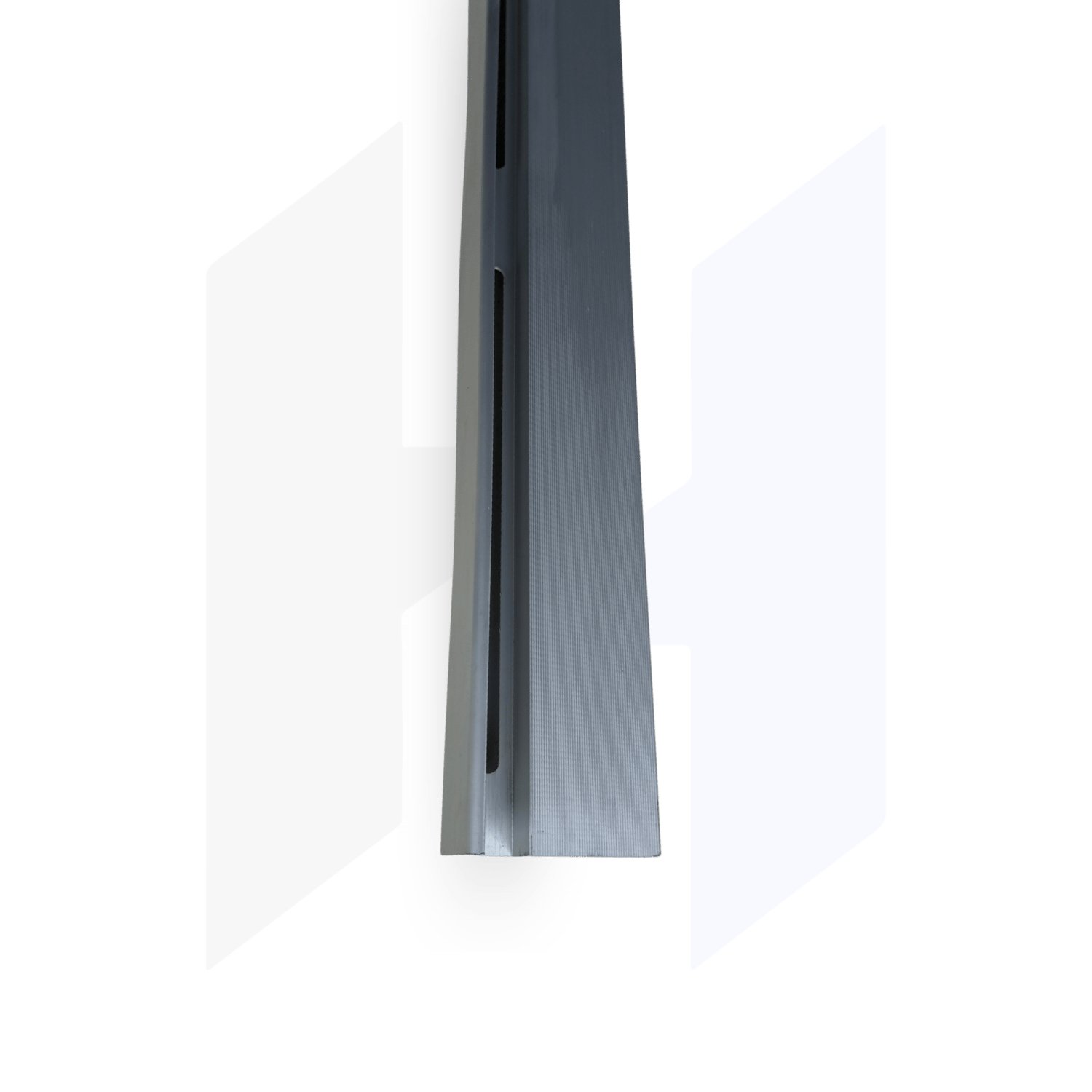

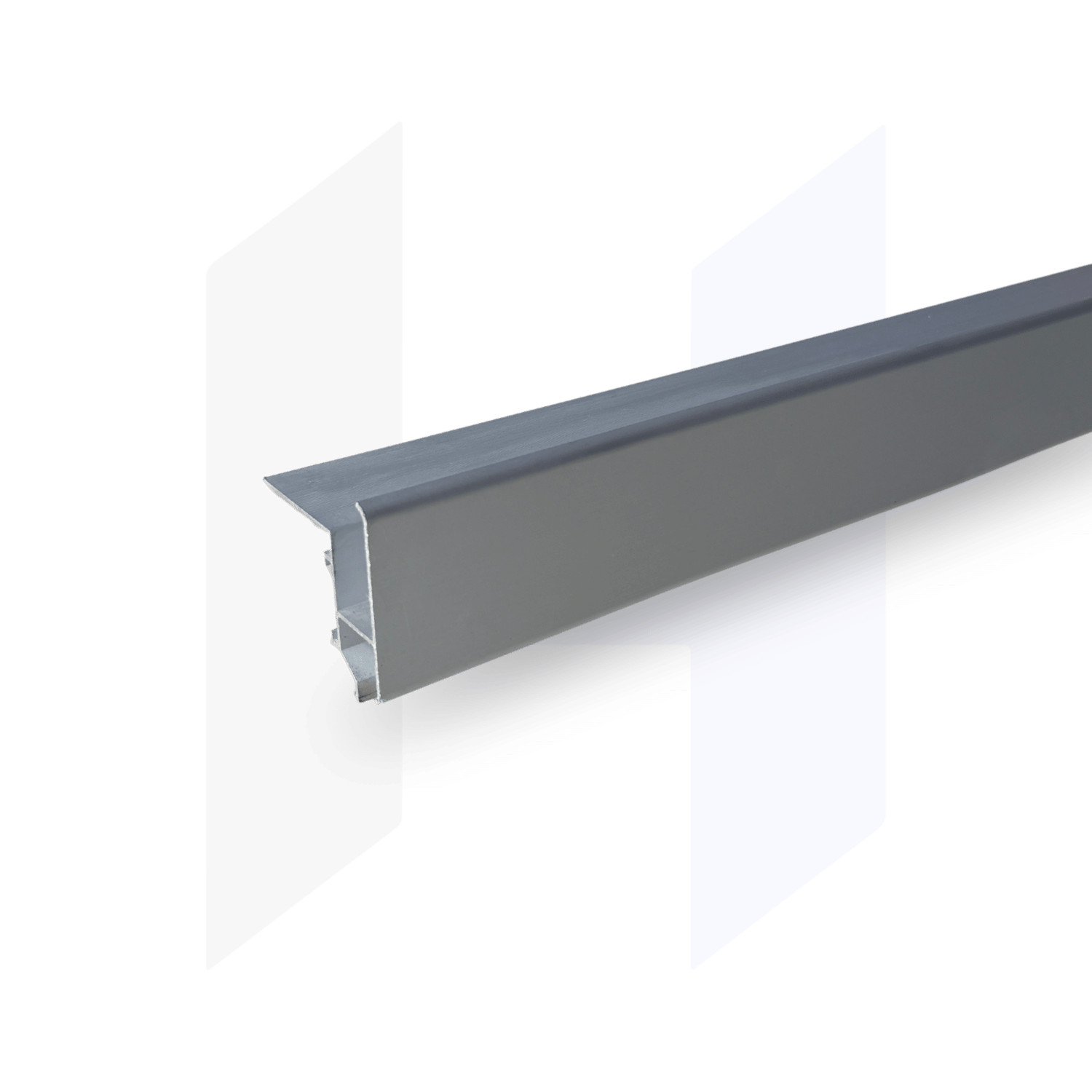

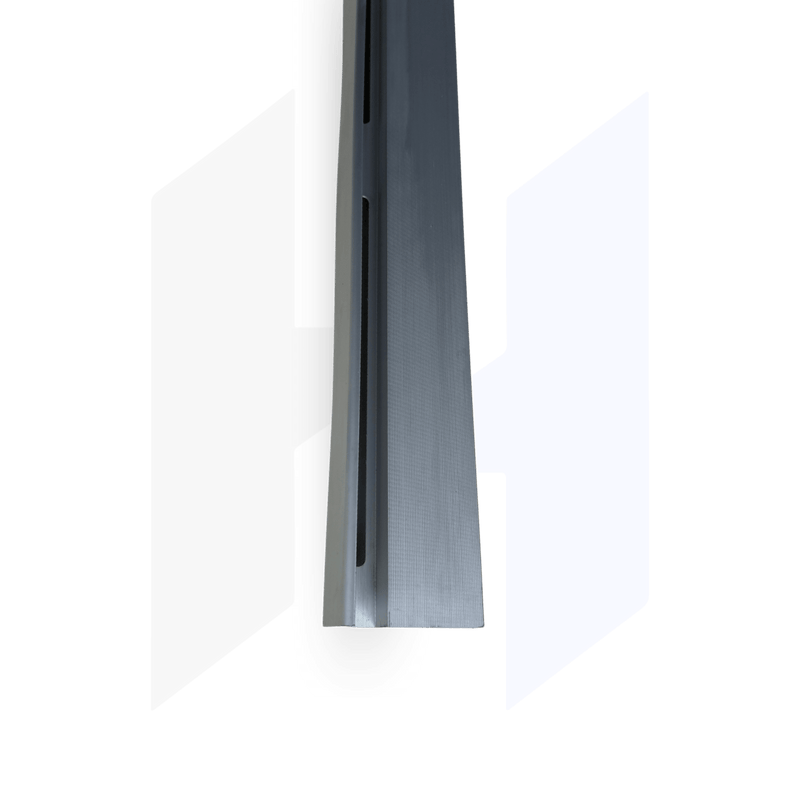

This profile incorporates a deeper fascia protection plate and a larger internal drainage cavity, providing increased tolerance for water movement at the balcony perimeter. Curved fascia detailing at both the top and bottom edges softens the visual drop while assisting controlled runoff through elongated weep slots along the profile.

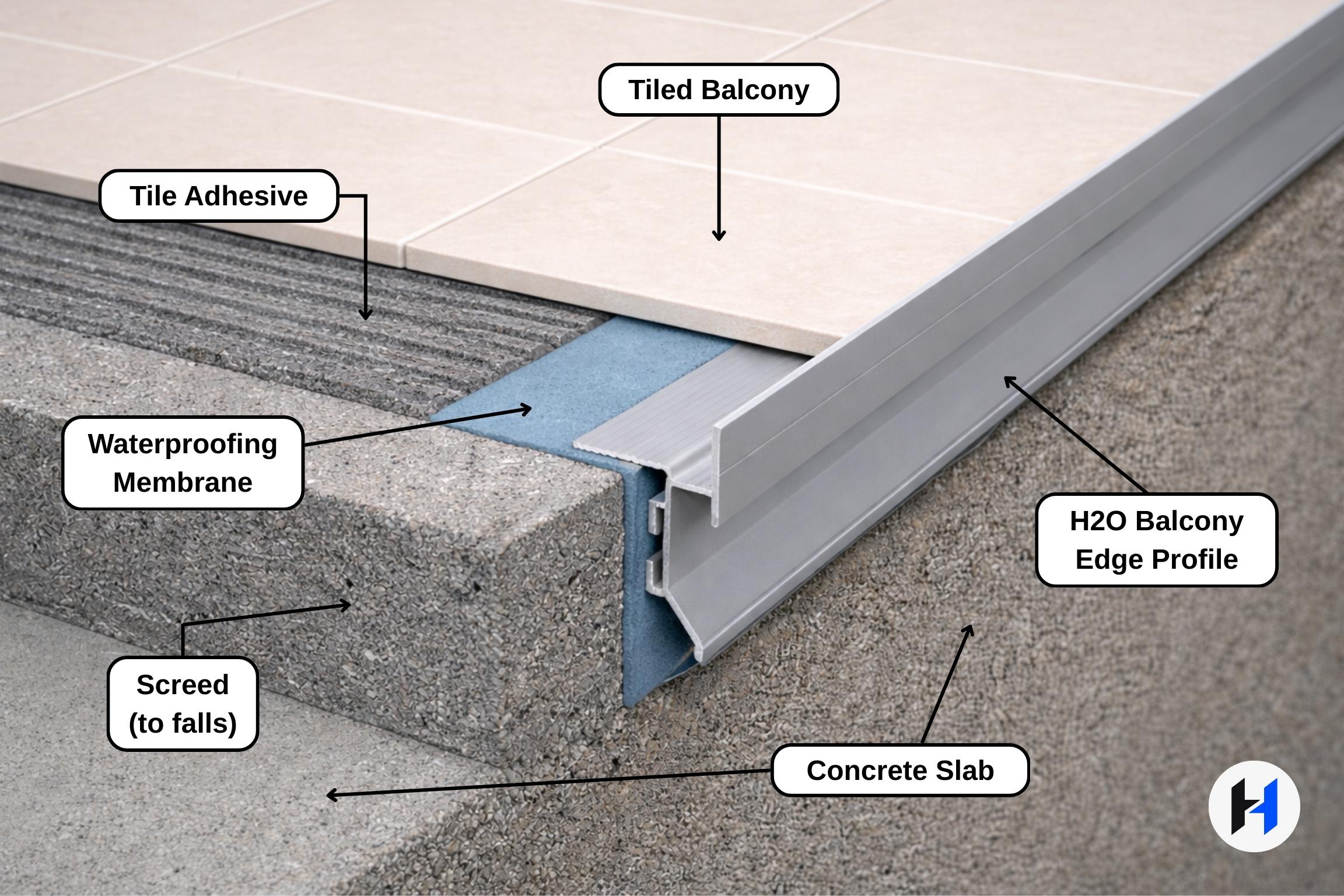

Manufactured from architectural-grade aluminium and supplied in 6m standard lengths, the profile is designed to coordinate with typical balcony build-ups including screed to falls, liquid-applied waterproofing membranes, tile adhesives, and tiled finishes. The integrated drip detail assists in breaking surface tension, reducing the risk of water wrapping back to the underside of slabs or façades.

This balcony edge profile is exclusively supplied by H2O Supplies and is proudly manufactured in Australia. It is suitable for specification on residential and commercial balconies, podiums, and external walkways in accordance with AS 4654.2 principles for external above-ground waterproofing systems.

For tighter balcony build-ups or a slimmer visual edge detail, consider the H2O Slimline Balcony Edge Profile.
