Mapei

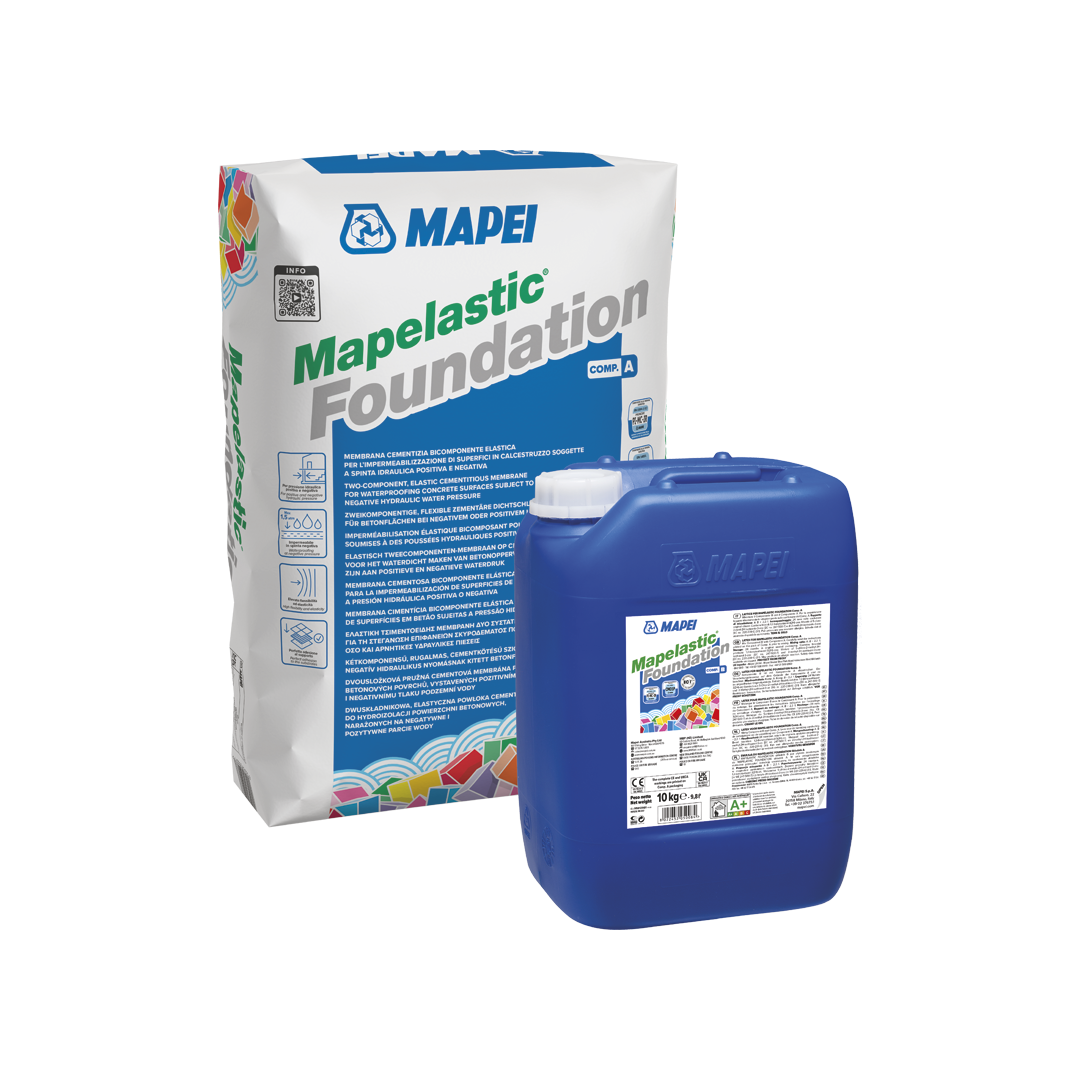

Mapei Mapelastic Foundation – 2-Part Kit (32kg)

Regular price
$224.50 AUD
Sale price
$224.50 AUD
Regular price
$249.95 AUD
Shipping calculated at checkout.

Prices shown exclusive of GST.

Online stock available
Mapei Mapelastic Foundation waterproofs concrete and prepared masonry exposed to positive or negative water pressure. This flexible cementitious waterproofing membrane suits retaining walls, basements, lift pits and other below-ground structures, as well as specified pools and basins. The 32 kg two-part kit forms a bonded barrier at a minimum total thickness of 2 mm, with resistance to chlorides and sulphates after curing. Use it where a flexible coating is required as part of a detailed waterproofing system. Prepare the substrate and seal leaks, joints and penetrations before coating; the membrane does not replace those details.
Calculating estimated delivery

H2O AI Product Support

Technical and product guidance for the item you’re viewing.

  • For retaining/foundation walls, basements, underground car parks, lift pits, pools, basins and channels subject to positive or negative pressure.
  • Apply to sound, clean cementitious substrates; remove laitance and contaminants, repair defects and prepare blockwork with suitable Mapei mortar.
  • Stop active water flow and seal construction joints, cracks and penetrations with the specified repair/detailing system before coating.
  • Structural joints require Mapeband TPE bonded with Adesilex PG4 and quartz as specified; do not coat across moving joints without detailing.
  • Apply at least two coats to a minimum total 2 mm thickness; first coat must be perfectly dry before recoating.
  • Do not add water, cement or aggregates. Protect from rain/water for the first 24 hours and from rapid evaporation in hot, dry or windy conditions.
  • 32 kg kit: 22 kg Part A powder + 10 kg Part B liquid; mixing ratio 2.2:1 by weight.
  • Pot life approximately 60 minutes at 20°C; second coat approximately 6 hours after the first, only when perfectly dry.
  • Minimum final thickness 2 mm; do not exceed 2 mm per coat.
  • Roller consumption: approximately 1.65 kg/m²/mm, equivalent to 3.30 kg/m² for the complete 2 mm system.
  • A 32 kg kit therefore covers approximately 9.70 m² by roller at 2 mm before allowance; this is not a per-coat coverage figure.
  • Spray consumption: approximately 1.75 kg/m²/mm on flat surfaces or 2.10 kg/m²/mm on rough, irregular surfaces.
  • The TDS application instructions specify 5–35°C, while its technical table lists 5–40°C. Confirm work above 35°C with Mapei rather than assuming the higher limit.
  • Do not apply to water-saturated substrates; allow surfaces to dry off before application.
  • Manufacturer reports negative-pressure resistance up to 1.5 bar and EN 1504-2/EN 14891 performance; these are not blanket Australian installation-compliance claims.
  • Storage: powder 12 months in dry original packaging; liquid 24 months.

Mapei Mapelastic Foundation FAQs

Can Mapelastic Foundation resist negative water pressure?
Yes. Mapei specifies use under positive and negative hydrostatic pressure and reports negative-pressure performance up to 1.5 bar. The substrate, active leaks, joints and penetrations must still be repaired and detailed before applying the membrane.
How much area does the 32 kg kit cover?
At the minimum 2 mm total thickness, roller consumption is approximately 3.30 kg/m², giving about 9.70 m² per kit before waste or extra substrate consumption. Spraying uses more: approximately 3.50 kg/m² on flat surfaces or 4.20 kg/m² on rough surfaces at 2 mm.
How many coats are required?
At least two coats, achieving a final thickness of at least 2 mm. Do not exceed 2 mm in a single coat. Thickness is the governing requirement; spreading the material further reduces the specified system build.
When can the second coat be applied?
Approximately 6 hours after the first coat, provided the first coat is perfectly dry. Pot life is approximately 60 minutes at 20°C. The recoat time is separate from substrate age or readiness for immersion.
Can I apply it to saturated concrete or an active leak?
No. The TDS says saturated surfaces must dry off before coating. Stop continuous/localised water flow using the specified plugging mortar and complete crack, joint and penetration repairs before applying Mapelastic Foundation.
Which rate does the calculator use?
It uses roller application at a total 2 mm thickness: 32 kg ÷ (1.65 kg/m²/mm × 2 mm) = approximately 9.70 m² per kit, then adds 10% allowance. The rate already covers the complete system. Spray work, rough substrates or a thicker specification require a separate estimate.
