Polyfond Kit Drain – HDPE Protection & Drainage Sheet
- Regular price
- $599.95 AUD
- Sale price
- $599.95 AUD
- Regular price
-
- Unit price
- / per
Prices shown exclusive of GST.

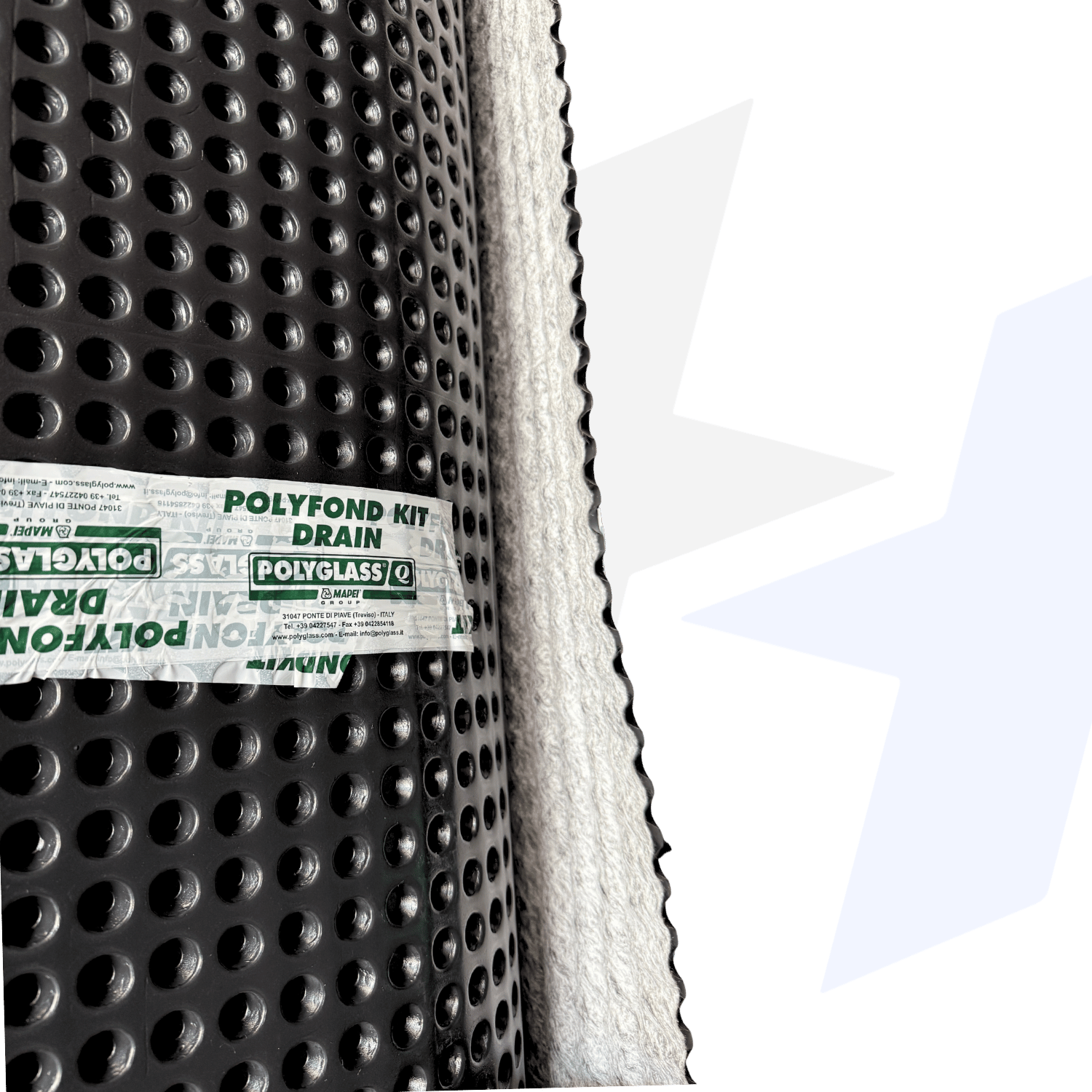

Polyfond Kit Drain is a high-density polyethylene (HDPE) protection and drainage sheet laminated with a polypropylene nonwoven geotextile. It provides both mechanical protection for waterproofing membranes and reliable vertical and horizontal drainage in below-grade applications.
Builders are increasingly moving away from Corflute sheets alone behind retaining walls. While Corflute offers basic protection, it provides no real drainage. The new standard is engineered drainage cell systems like Polyfond Kit Drain — designed to create a void, channel water efficiently, and relieve hydrostatic pressure for long-term performance and structural integrity.
Ideal for retaining walls, basements, and foundation systems, Polyfond Kit Drain prevents hydrostatic pressure build-up while protecting waterproofing layers from backfill damage. Its dimpled HDPE core and geotextile facing ensure effective filtration, ventilation, and lasting waterproofing protection.
• Combines protection and drainage in one system
• Durable HDPE core laminated with polypropylene nonwoven
• High compressive strength and puncture resistance
• Excellent in-plane water flow capacity
• Protects waterproofing during backfilling
• Promotes ventilation and prevents hydrostatic pressure
• Suitable for below-grade walls and lightweight roof gardens
• Complies with EN 13252:2014
• Protection and drainage for below-grade waterproofing membranes
• Retaining walls and basement foundations
• Vertical drainage against earth-retained structures
• Horizontal drainage in green roofs or landscaped podiums
• Use behind sheet membranes or liquid-applied systems
• Type: HDPE dimpled drainage sheet with laminated nonwoven geotextile
• Material: high-density polyethylene (HDPE) with polypropylene nonwoven
• Thickness: 7.5mm (±2 mm)
• Mass per unit area: 600 g/m² (±85 g/m²)
• In-plane water flow: 1.9 L/(m·s) @ 20 kPa
• Tensile strength: 10 kN/m (MD/CMD)
• Elongation at break: 50–60 %
• Static puncture resistance (CBR): 1000N
• Roll height: 2m
• Roll length: 20m
• Coverage per roll: 40m²
