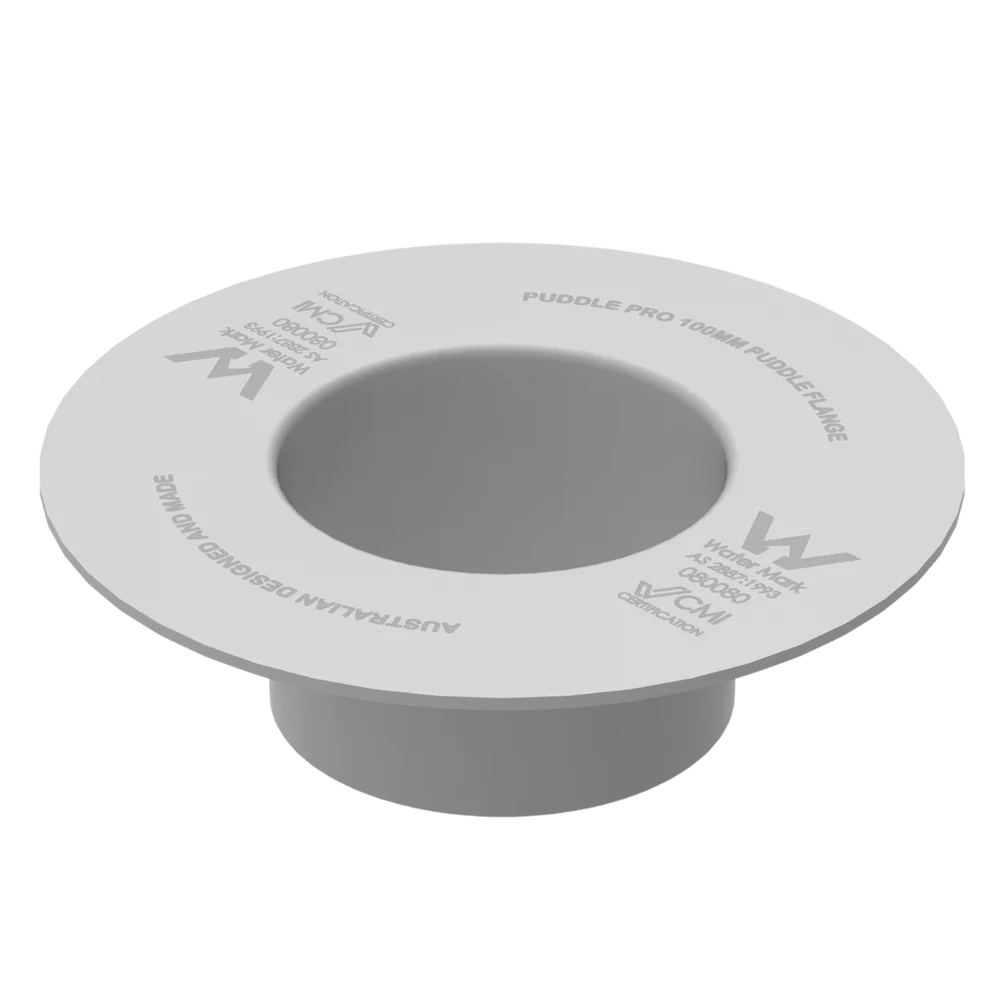

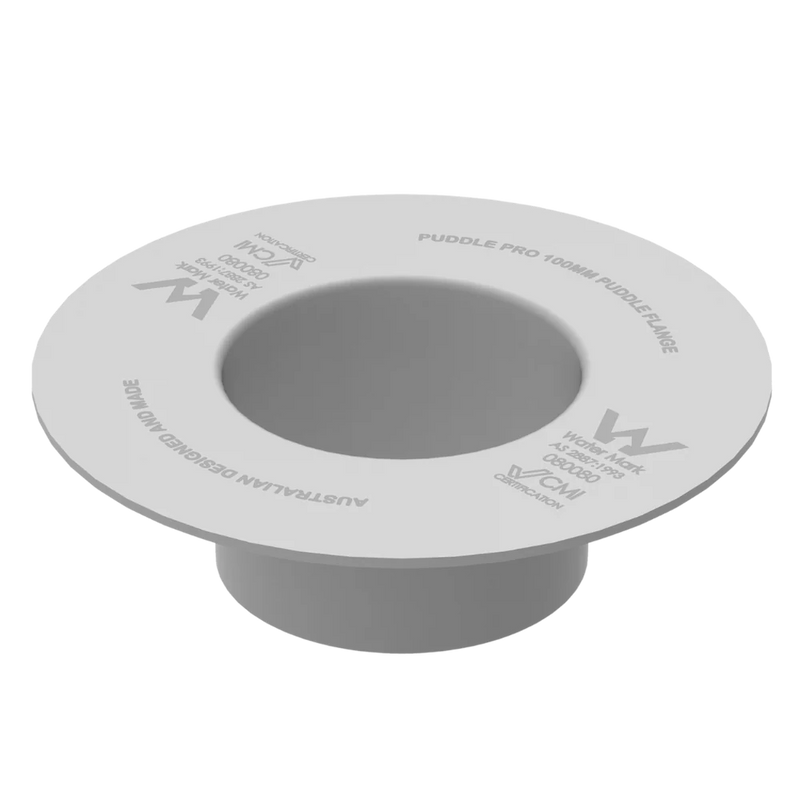

Puddle Pro 100mm ABS retrofit puddle flange - angled view

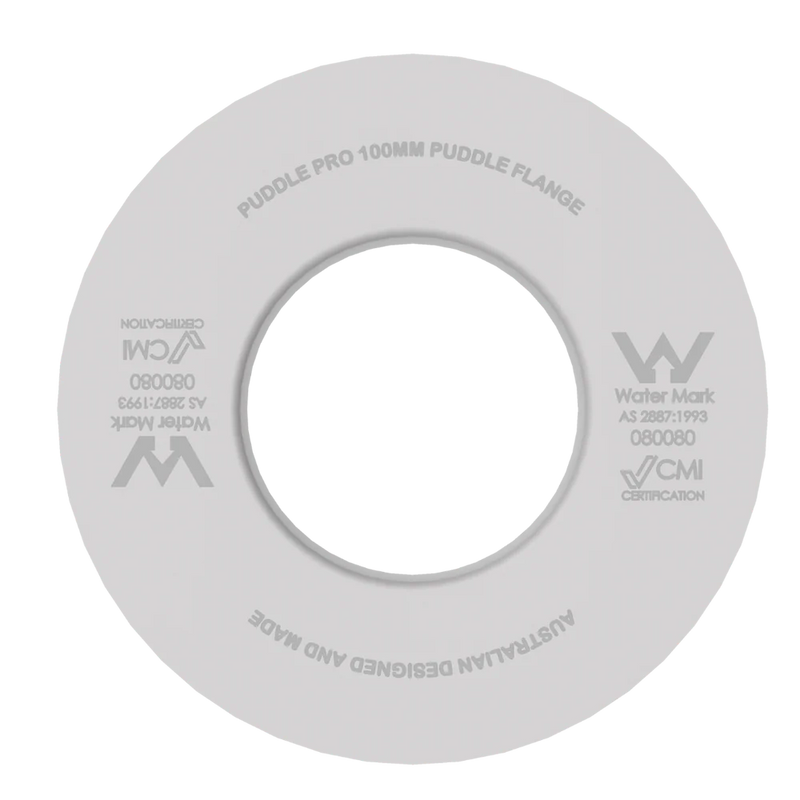

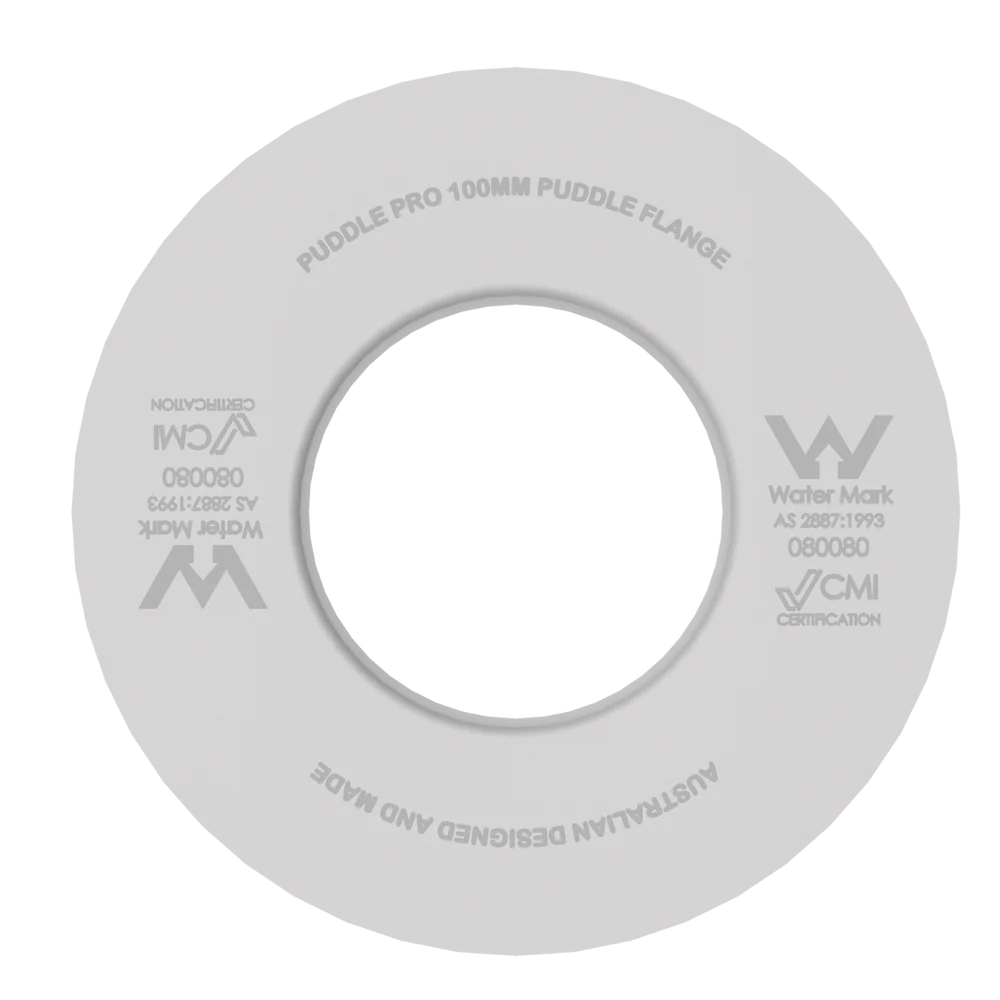

Puddle Pro 100mm ABS retrofit puddle flange - top view
Puddle Pro 100mm ABS retrofit puddle flange - angled view
Puddle Pro 100mm ABS retrofit puddle flange - top view
Puddle Pro 100mm ABS retrofit puddle flange - angled view
Puddle Pro 100mm ABS retrofit puddle flange - top view
Caulkmate

Puddle Pro 100mm Retrofit Puddle Flange

$15.00 AUD
$15.00 AUD
Shipping calculated at checkout.

Prices shown exclusive of GST.

EMPTY DOM REMOVE PROTECTOR
Puddle Pro 100mm Retrofit Puddle Flange is an Australian-designed ABS waterproofing flange used to create a secure membrane termination around 100mm floor waste pipe penetrations in concrete floors. Designed for
  • Creates a defined ABS bonding interface between 100mm drainage pipework and the waterproofing membrane.
  • Recessed retrofit installation prevents the flange from standing proud and obstructing drainage falls.
  • The formed 12% fall directs incidental water towards the outlet.
Calculating estimated delivery
  • - Scored detachable inner lid is designed to assist temporary flood testing.
  • - TDS-listed compatibility with polyurethane, bitumen, PVC, TPO and EPDM membranes using the specified ACTFLEX primer.
  • - Corrosion-resistant ABS construction with a stated service temperature range of -40°C to 80°C.
  • - WaterMark certified model ABS/100-PF under certificate 080080-I01-R00 to AS 2887:1993.
  • - Retrofit installation requires a formed concrete recess so the flange does not finish proud of the drainage plane.
  • 1. Confirm the drainage location, actual 100mm pipe dimensions, required floor falls and finished build-up before cutting.
  • 2. Ensure the concrete substrate is sound, clean and free of debris, then mark the flange position.
  • 3. Form a 200mm recess using the Innovative Tools 200mm Concrete Recess Disc or another controlled method that achieves the required profile without damaging the pipe or slab.
  • 4. Dry-fit the flange. The horizontal face must not stand proud and should finish flush with the concrete drainage plane; coordinate the TDS-stated 3-4mm set-down with the project build-up.
  • 5. Apply ACTFLEX Super Bond 007 or ACTFLEX Super Prime 008 to the outside, top face and underside of the horizontal flange, then allow it to dry as specified.
  • 6. Apply a continuous bead of ACTFLEX 75FC or ACTFLEX MS PRO beneath the horizontal flange face.
  • 7. Apply suitable PVC primer and solvent cement to the flange neck and pipe connection, then centre the flange, insert it fully and hold until the connection initially sets.
  • 8. Allow the PVC connection and sealant to dry or cure for their specified periods before applying the selected waterproofing membrane.
  • 9. Integrate the membrane onto the prepared flange in accordance with the current membrane TDS without obstructing the drainage path.
  • 10. Conduct flood testing only after all system components have reached their specified cure, then remove the scored lid without damaging the completed termination.
  • Product type: Retrofit puddle flange
  • Material: ABS plastic
  • WaterMark model identification: ABS/100-PF
  • Pipe compatibility: 100mm
  • Outside diameter: 200mm
  • Internal opening: 96.9mm
  • Flange depth: 60mm
  • Formed fall: 12% positive fall towards outlet
  • Installation method: Recessed retrofit
  • Membrane compatibility: Polyurethane, bitumen, PVC, TPO and EPDM with specified ACTFLEX primer
  • Temperature resistance: -40°C to 80°C
  • Fire resistance: Self-extinguishing, Class B2 (DIN 4102)
  • Certification: WaterMark 080080-I01-R00
  • Applicable specification: AS 2887:1993
  • Certificate expiry: 9 February 2030
Certifications / Test Reports

Complete Your System

  • Puddle Pro 100mm ABS retrofit puddle flange - angled view
    Current product Puddle Pro 100mm Retrofit Puddle Flange $15.00 AUD In stock
  • ACTFLEX MS PRO Joint & Expansion Sealant
    System component ACTFLEX MS PRO Joint & Expansion Sealant $14.00 AUD In stock
System total

Applications

Bathroom
Internal Wet Areas
Below Ground

Technical Specifications

Key technical properties of this product. Refer to the Technical Data Sheet for complete installation and performance information.

ClassificationWaterMark-certified ABS retrofit puddle flange
Suitable SubstratesConcrete floors with compatible 100mm drainage pipework
Fire ResistanceSelf-extinguishing, Class B2 (DIN 4102)
Certificate Expiry9 February 2030
