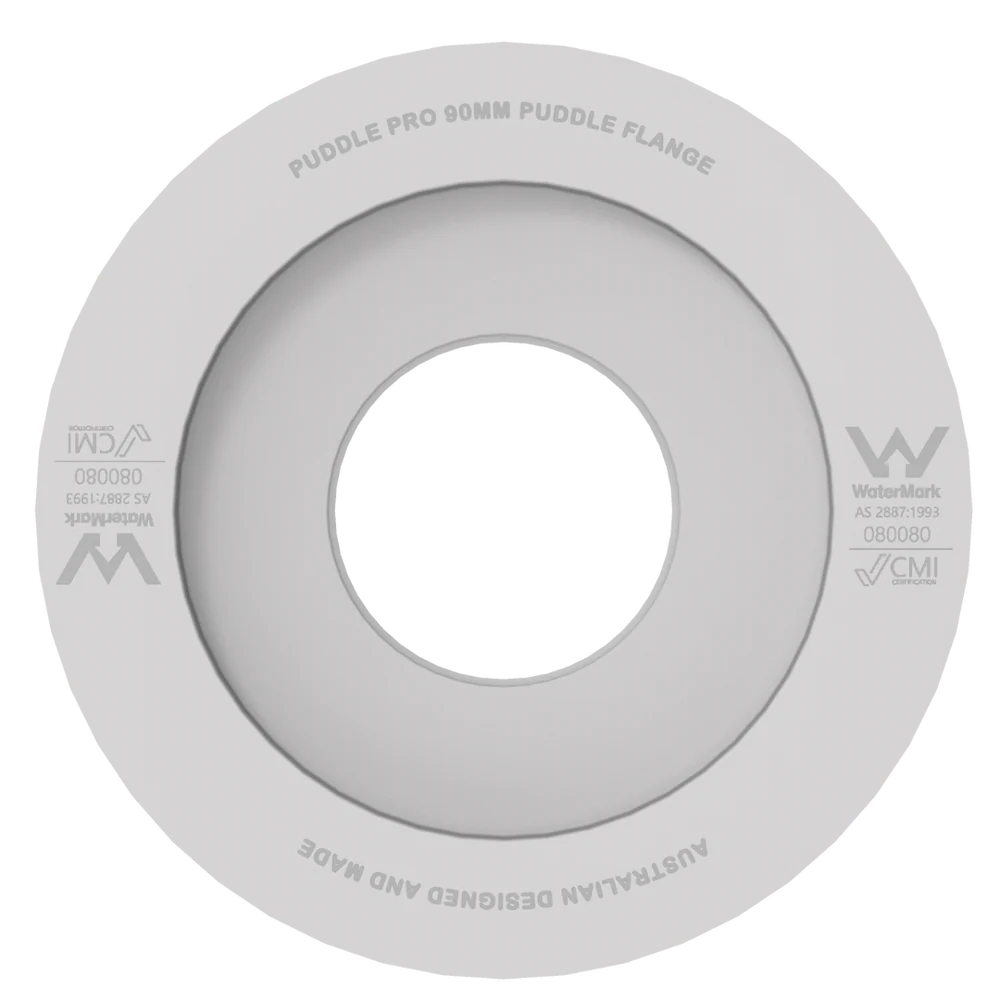

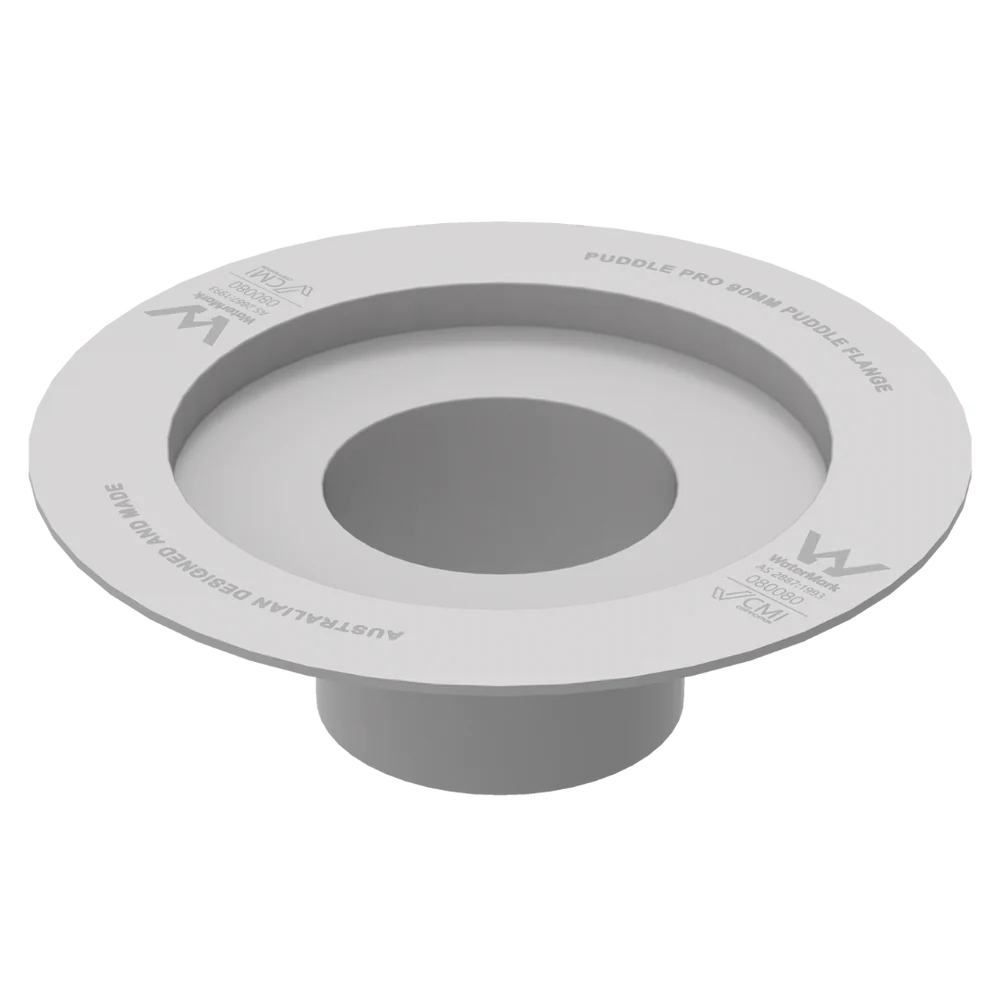

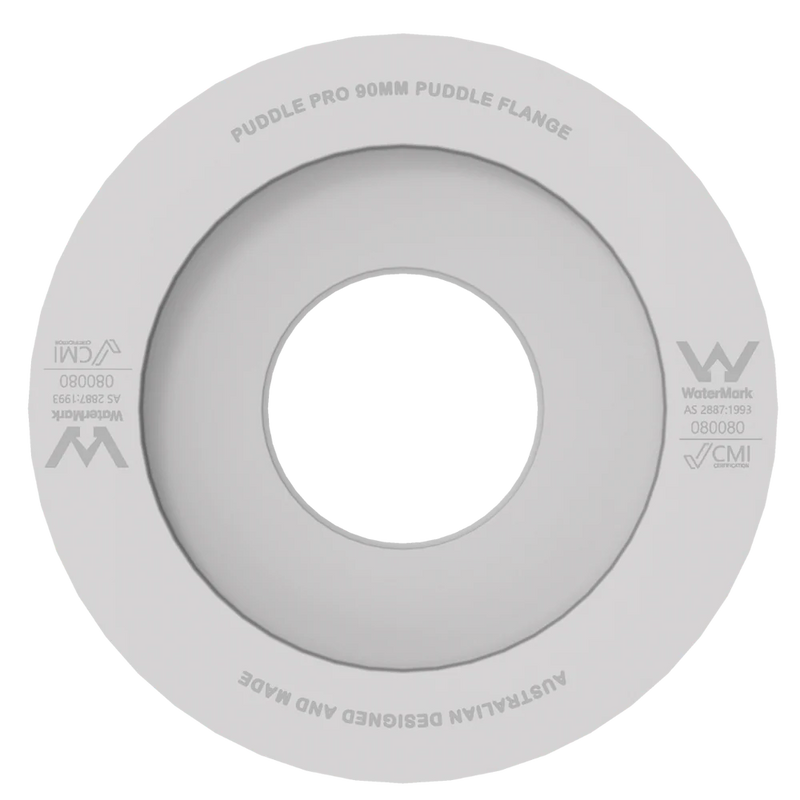

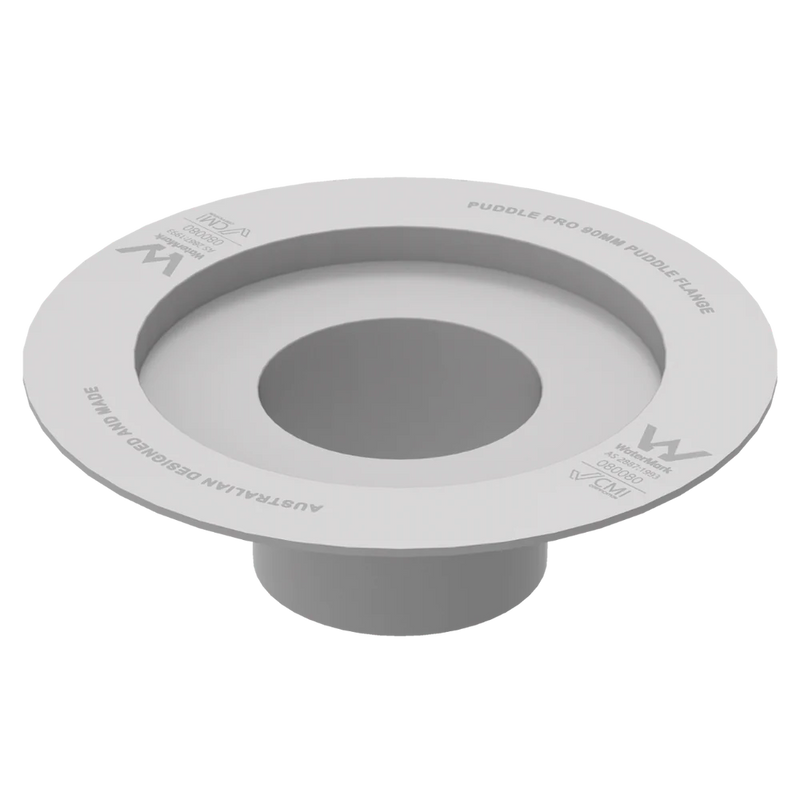

Puddle Pro 90mm Retrofit Puddle Flange
- Regular price
- $15.00 AUD
- Sale price
- $15.00 AUD
- Regular price
-
Shipping calculated at checkout.
Prices shown exclusive of GST.
- Creates a defined top-of-screed waterproofing termination around compatible drainage pipework.
- The 13mm centre recess accommodates a compatible Smart tile insert floor waste.
- The floor waste can be oriented in any direction to suit the tile layout.
Couldn't load pickup availability
Overview & Features
- - 13mm-deep centre recess accepts a compatible Smart tile insert floor waste in any orientation.
- - Designed to align the tiled surface flush with the compatible tile insert waste.
- - TDS-listed compatibility with polyurethane, bitumen, PVC, TPO and EPDM membranes using the specified ACTFLEX primer.
- - Corrosion-resistant ABS construction with a stated temperature range of -40°C to 80°C.
- - WaterMark certified model ABS/90-PF under certificate 080080-I01-R00 to AS 2887:1993.
Application Guide
- 1. Confirm the actual pipe size, drainage position, screed height, tile thickness and compatible floor waste build-up before installation.
- 2. Ensure the screed or concrete substrate is sound, clean and free of debris, then mark the flange position.
- 3. Form a controlled recess large enough for the flange to fit snugly and finish flush with the substrate level.
- 4. Apply ACTFLEX Super Bond 007 or ACTFLEX Super Prime 008 to the flange and inside the pipe drainage outlet, then allow the primer to dry as specified.
- 5. Apply an appropriate primer to the screed or concrete surface selected for the substrate condition and moisture level.
- 6. Apply a continuous bead of ACTFLEX 75FC or ACTFLEX MS PRO beneath the flange and around the neck.
- 7. Centre the flange over the drainage outlet and push it fully into position until joint sealant is expressed from the sides.
- 8. Remove excess sealant and top up the flange-to-substrate junction where required. Maintain the TDS-stated 3-4mm set-down while ensuring the flange does not stand proud.
- 9. Allow the primer and sealant to dry or cure for their specified periods before integrating the selected waterproofing membrane.
- 10. Install the compatible Smart tile insert floor waste and tiled finish within the 13mm recess in accordance with the waste, adhesive and tiling system instructions so the finished levels remain flush.
Specifications & Standards
- Product type: Top-of-screed retrofit puddle flange
- Material: ABS plastic
- WaterMark model identification: ABS/90-PF

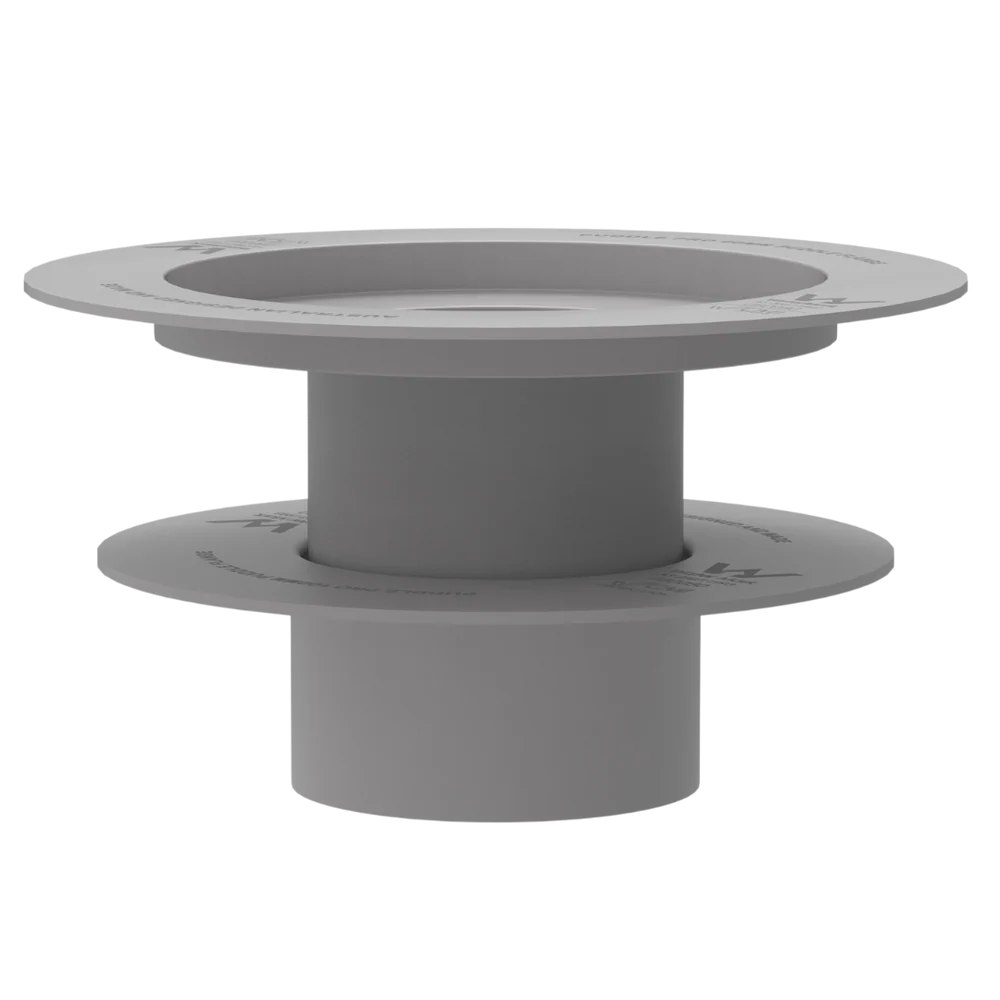

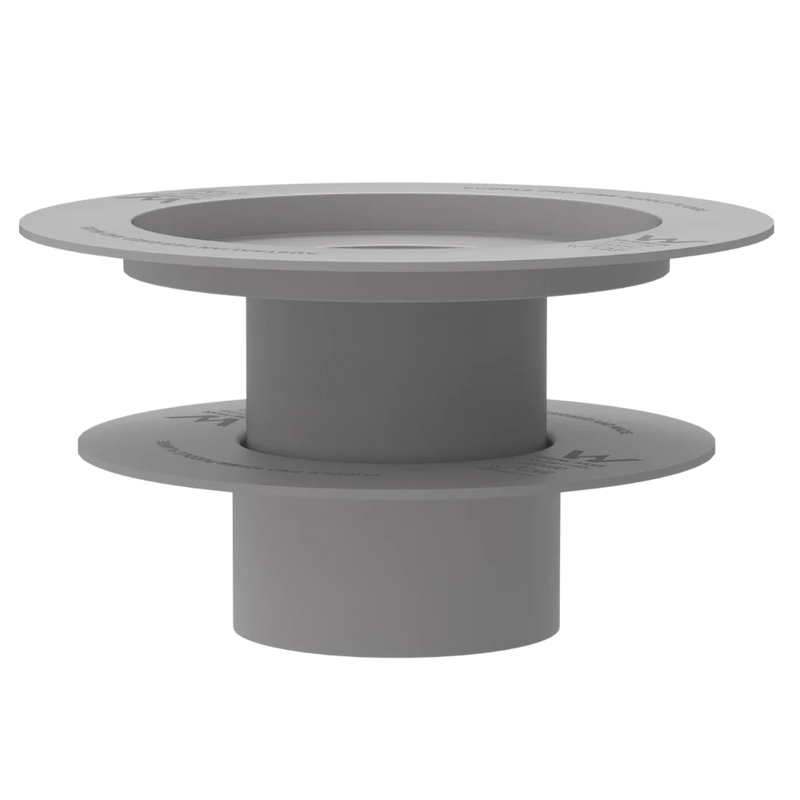

- Pipe compatibility: 90mm and 100mm
- Outside diameter: 235mm
- Internal opening: 93.15mm
- Flange depth: 75.60mm
- Centre recess depth: 13mm
- Floor waste compatibility: Compatible Smart tile insert floor waste
- Installation method: Top-of-screed retrofit
- Membrane compatibility: Polyurethane, bitumen, PVC, TPO and EPDM with specified ACTFLEX primer
- Temperature resistance: -40°C to 80°C
- Fire resistance: Self-extinguishing, Class B2 (DIN 4102)
- Certification: WaterMark 080080-I01-R00
- Applicable specification: AS 2887:1993
- Certificate expiry: 9 February 2030
Product Documents
Complete Your System
-
Current product Puddle Pro 90mm Retrofit Puddle Flange $15.00 AUD In stock -
System component ACTFLEX MS PRO Joint & Expansion Sealant $14.00 AUD In stock
Applications
Bathroom
Shower
Internal Wet Areas
Below Ground
Under Tile
Technical Specifications
Key technical properties of this product. Refer to the Technical Data Sheet for complete installation and performance information.
| Classification | WaterMark-certified ABS top-of-screed retrofit puddle flange |
|---|---|
| Suitable Substrates | Concrete and screed floors with compatible 90mm or 100mm drainage pipework |
| Fire Resistance | Self-extinguishing, Class B2 (DIN 4102) |
| Storage | Above ground at 10-26°C and 50% RH; cool, dry, ventilated and away from sunlight |
