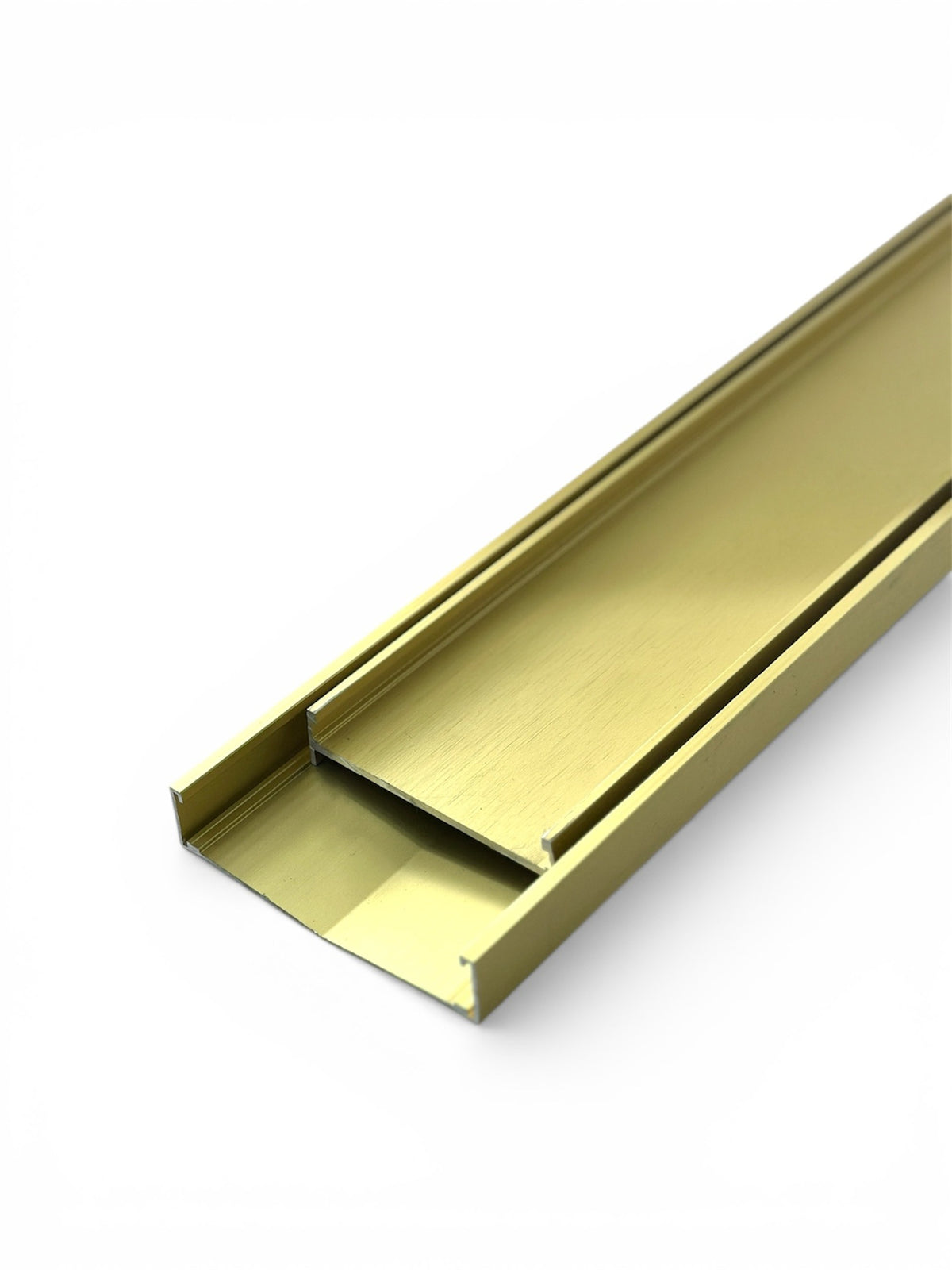

RenoX tile-insert V-drain in French Gold finish

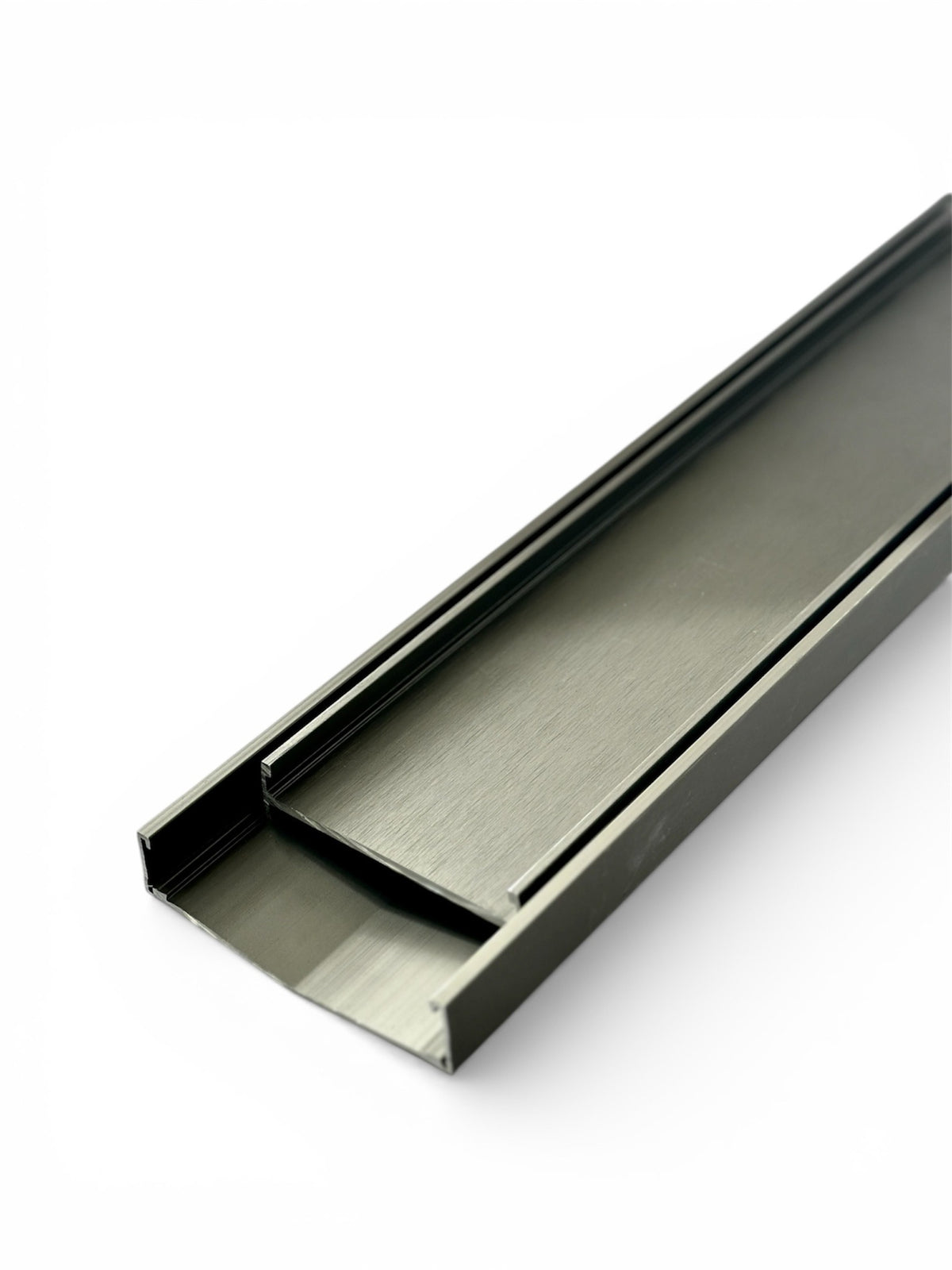

RenoX tile-insert V-drain in Gun-Metal finish

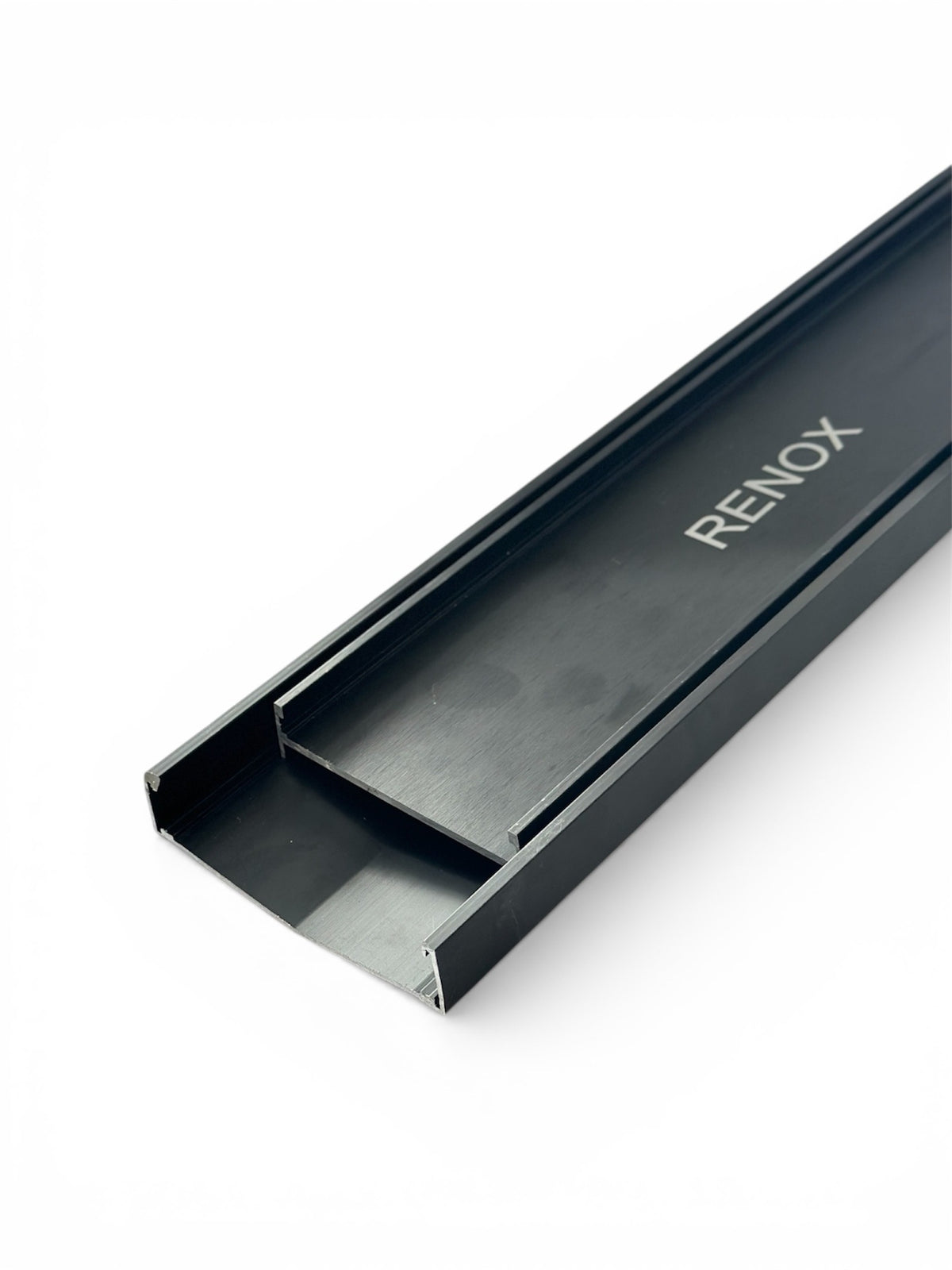

RenoX tile-insert V-drain in Matt Black finish

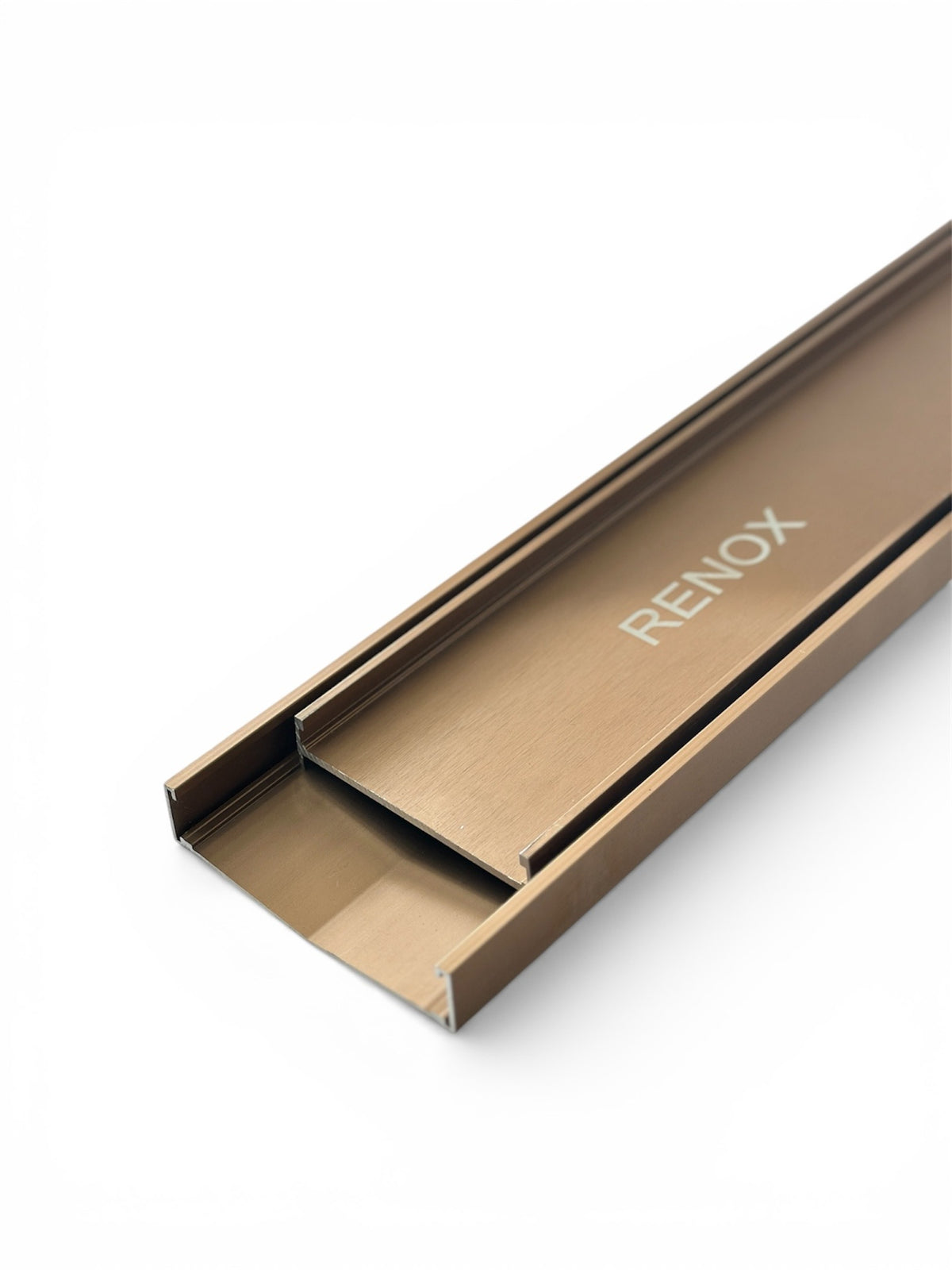

RenoX tile-insert V-drain in Copper Bronze finish

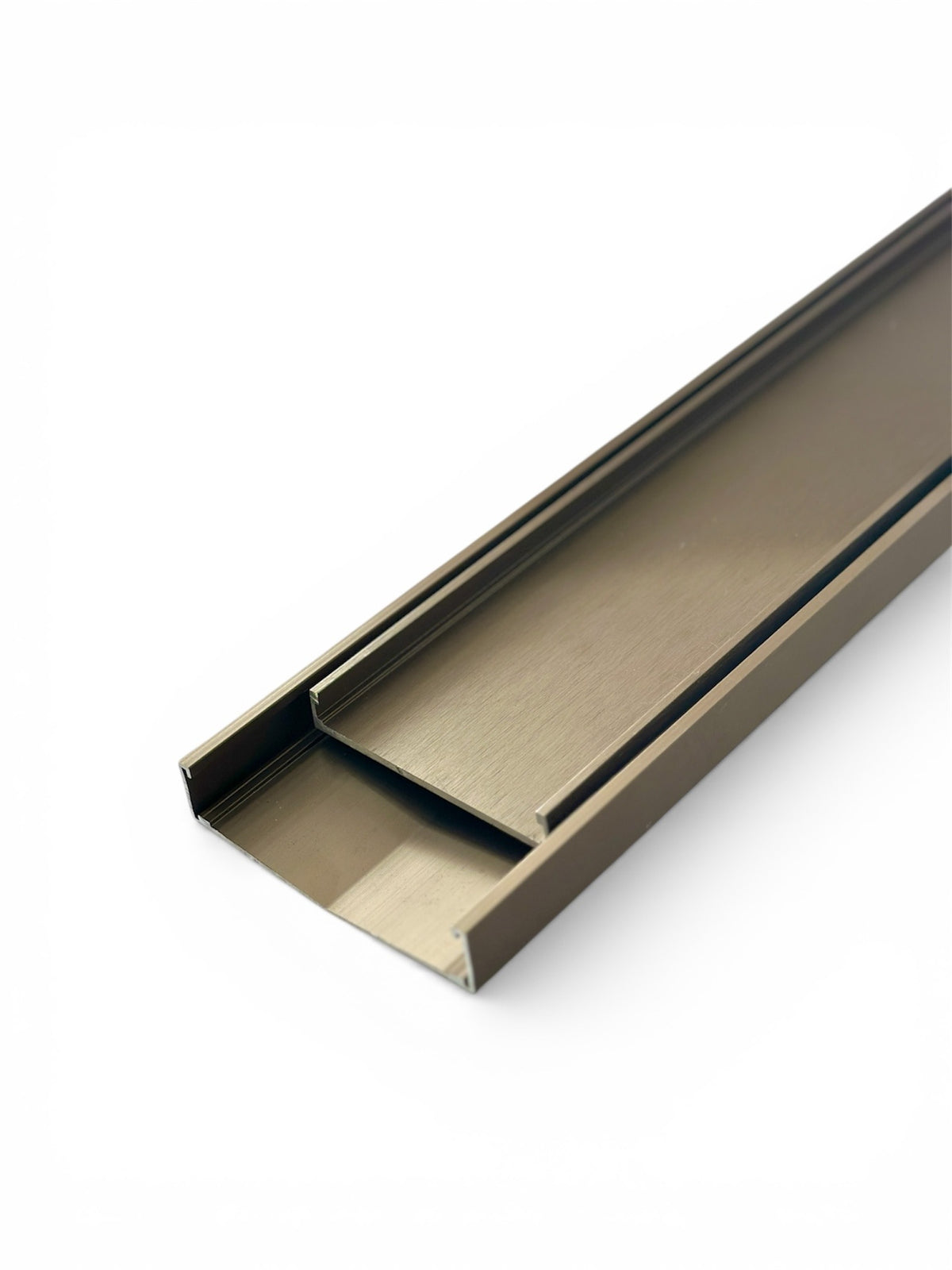

RenoX tile-insert V-drain in Antique finish

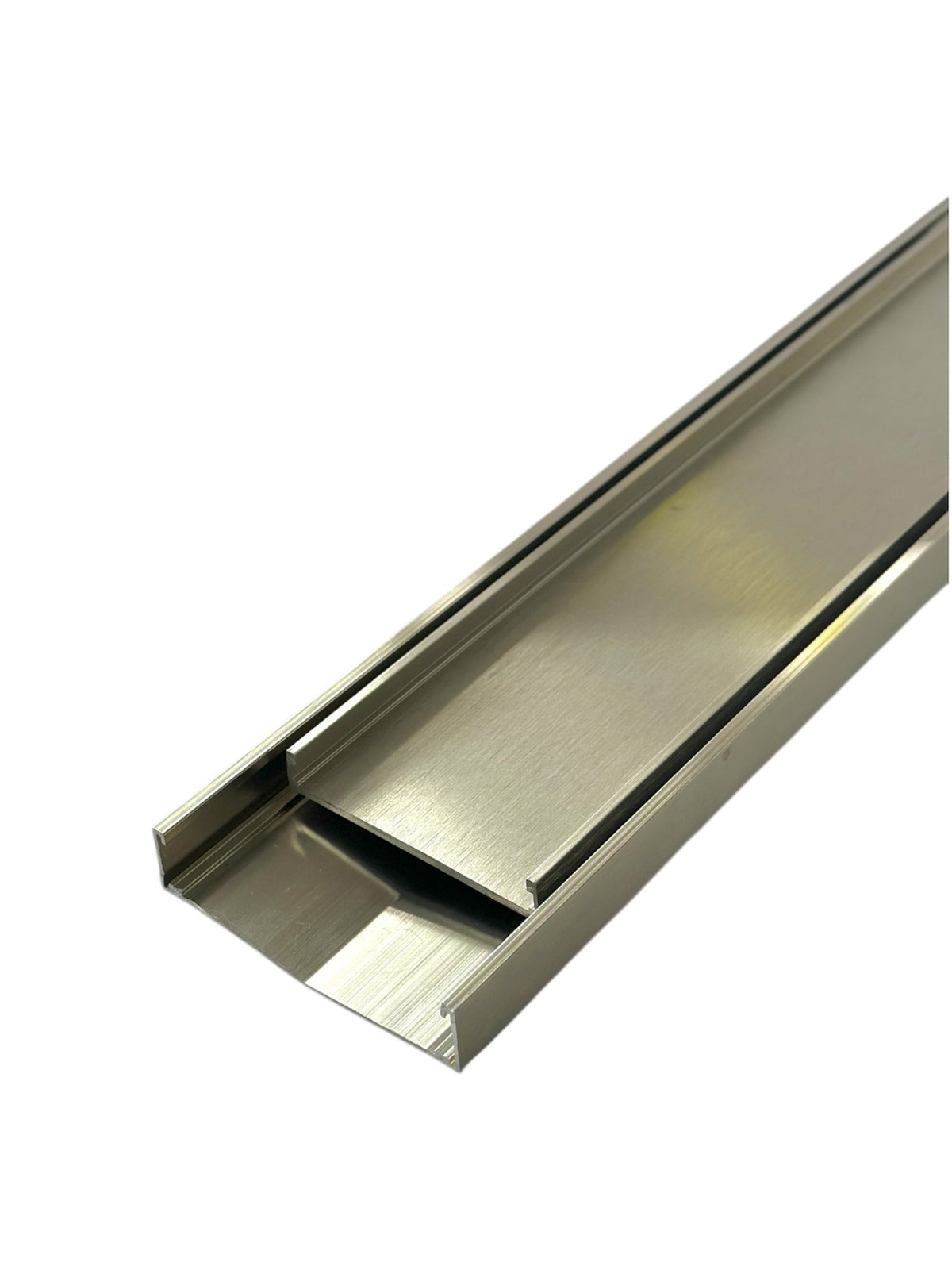

RenoX tile-insert V-drain in Brushed Nickel finish
RenoX tile-insert V-drain in French Gold finish
RenoX tile-insert V-drain in Gun-Metal finish
RenoX tile-insert V-drain in Matt Black finish
RenoX tile-insert V-drain in Copper Bronze finish
RenoX tile-insert V-drain in Antique finish
RenoX tile-insert V-drain in Brushed Nickel finish
RenoX tile-insert V-drain in French Gold finish
RenoX tile-insert V-drain in Gun-Metal finish
RenoX tile-insert V-drain in Matt Black finish
RenoX tile-insert V-drain in Copper Bronze finish
RenoX tile-insert V-drain in Antique finish
RenoX tile-insert V-drain in Brushed Nickel finish
RenoX

RenoX Tile-Insert V-Drain

$720.00 AUD
$720.00 AUD
Shipping calculated at checkout.

Prices shown exclusive of GST.

Online stock available
The RenoX Tile-Insert V-Drain is an architectural linear drainage system designed for efficient water removal and a seamless finish across tiled surfaces. Manufactured from corrosion-resistant anodised aluminium, its distinctive V-shaped channel directs water towards the centre, helping minimise pooling and water build-up. Suitable for bathrooms, showers, balconies and other tiled wet areas, the RenoX V-Drain features a removable tile insert for convenient cleaning and maintenance. Supplied in 4-metre lengths that can be cut to suit individual installations, the RenoX V-Drain is available in 21mm and 26mm channel depths and a range of contemporary colour finishes to complement surrounding tiles and tapware.
  • The V-shaped profile guides surface water towards the channel centre.
  • The tile-insert design continues the surrounding tiled finish.
  • The insert rolls out to provide cleaning access.
Channel Depth:
Colour and Finish:
Calculating estimated delivery

H2O AI Product Support

Technical and product guidance for the item you’re viewing.
  • Anodised aluminium tile-insert linear drain
  • V-shaped drainage profile directs water towards the channel centre
  • Standard channel width: 100 mm
  • Channel depths: 21 mm and 26 mm
  • Tile thickness: up to 12 mm in the latest catalogue
  • Manufacturer maximum full length: 4000 mm; orderable lengths require confirmation
  • Removable roll-out insert for cleaning access
  • Seven finishes individually illustrated at both depths; Cool Nickel and Champagne depth availability requires confirmation
  • RenoX permits the drain to be cut on site to the required length; do not cut or modify it in ways that affect structural integrity or function. The latest catalogue illustrates 40 mm and 72 mm outlet accessories, but does not establish nominal pipe sizes, connection compatibility or kit inclusions. Confirm the selected depth, saleable length, accessories and drainage connection with RenoX. The channel does not replace a puddle flange or waterproofing termination; obtain the manufacturer's complete installation detail before installation.
  • Protect the finish during construction: retain protective wrapping as long as practical, avoid wet screed, grout, mortar and concrete contact, use a suitable placeholder during works and remove splashes immediately.
  • After installation, remove site residue with a soft cloth or soft brush and rinse with warm water. Avoid steel wool, scouring pads, acids, harsh alkaline cleaners and products unsuitable for aluminium.
  • Wash down every three months, or more often in harsh environments, using warm water and mild detergent where needed. Use a soft cloth or nylon brush and rinse detergents off thoroughly. The tile insert rolls out for cleaning access.
  • Product: standard tile-insert V-drain
  • Material: anodised aluminium
  • Channel width: 100 mm
  • Standard channel depths: 21 mm and 26 mm
  • Maximum full length: 4000 mm; this is not a confirmed saleable-length schedule
  • Existing 3 m configurations retained as Draft; supplier kit, length and ordering details require confirmation
  • Tile capacity: up to 12 mm, according to the latest 32-page Catalogue Edition 1

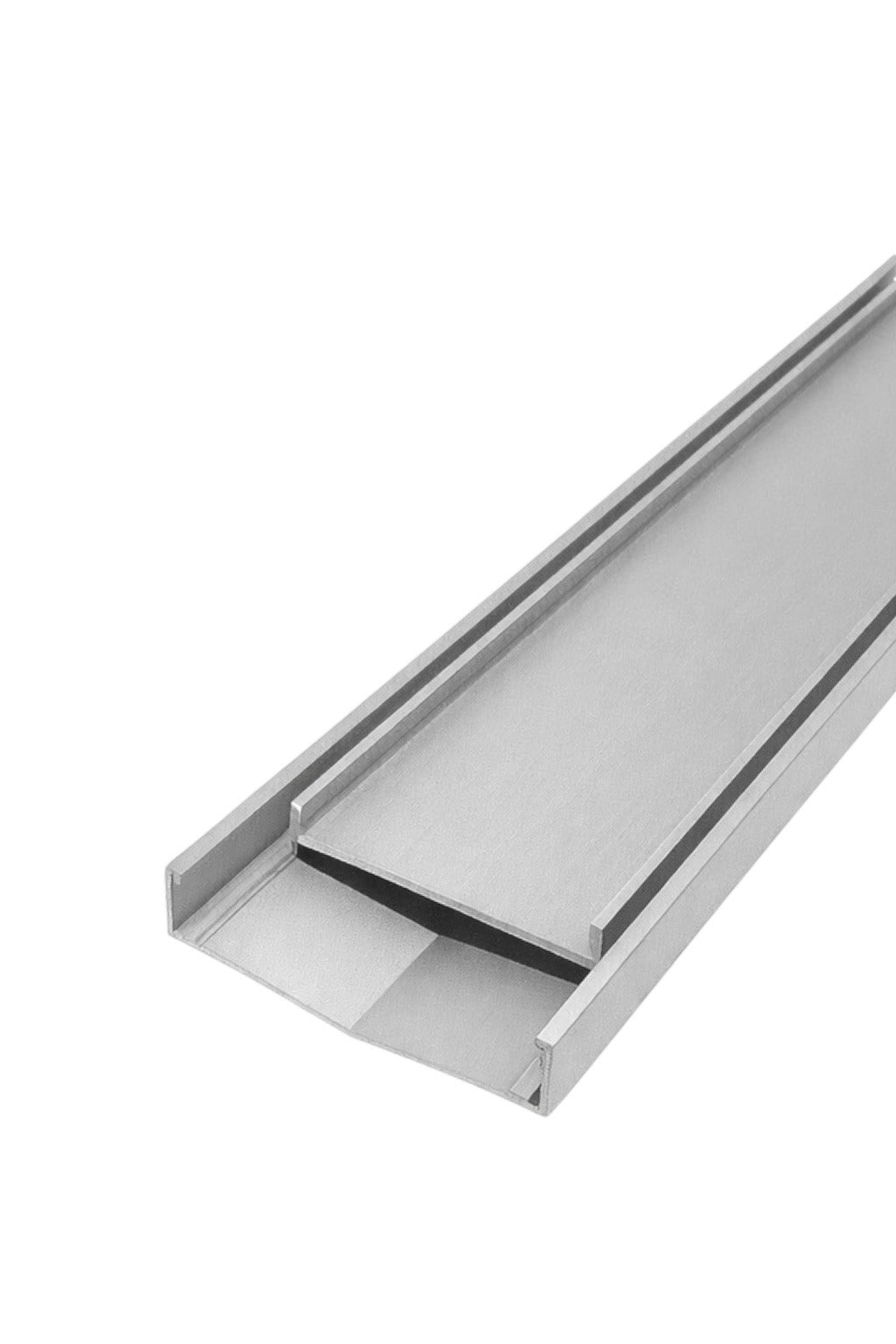

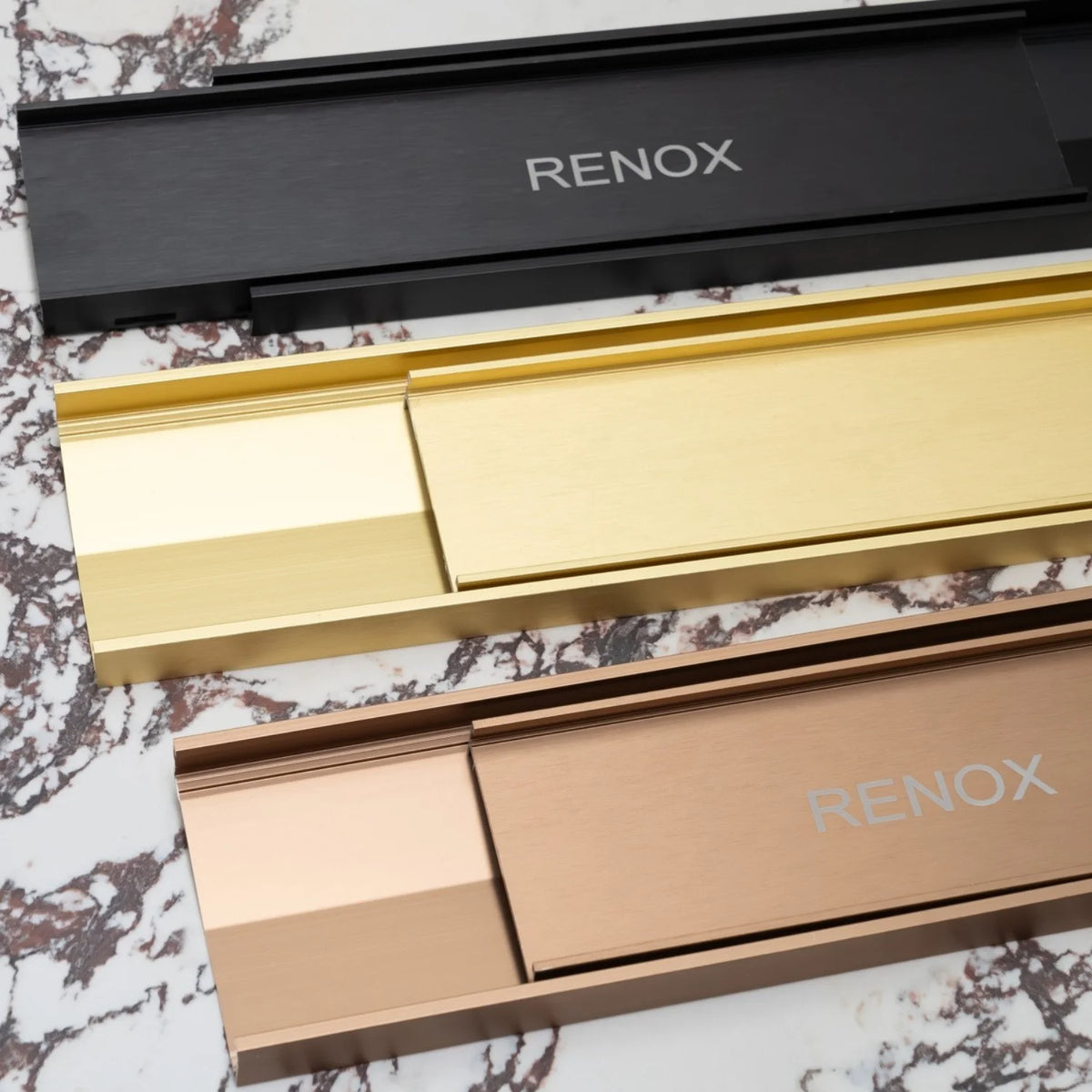

  • Finishes illustrated in both depths: Brushed Silver, Brushed Matt Black, Brushed Gold, Brushed Gun-Metal, Brushed Antique, Brushed Warm Nickel and Brushed Copper Bronze

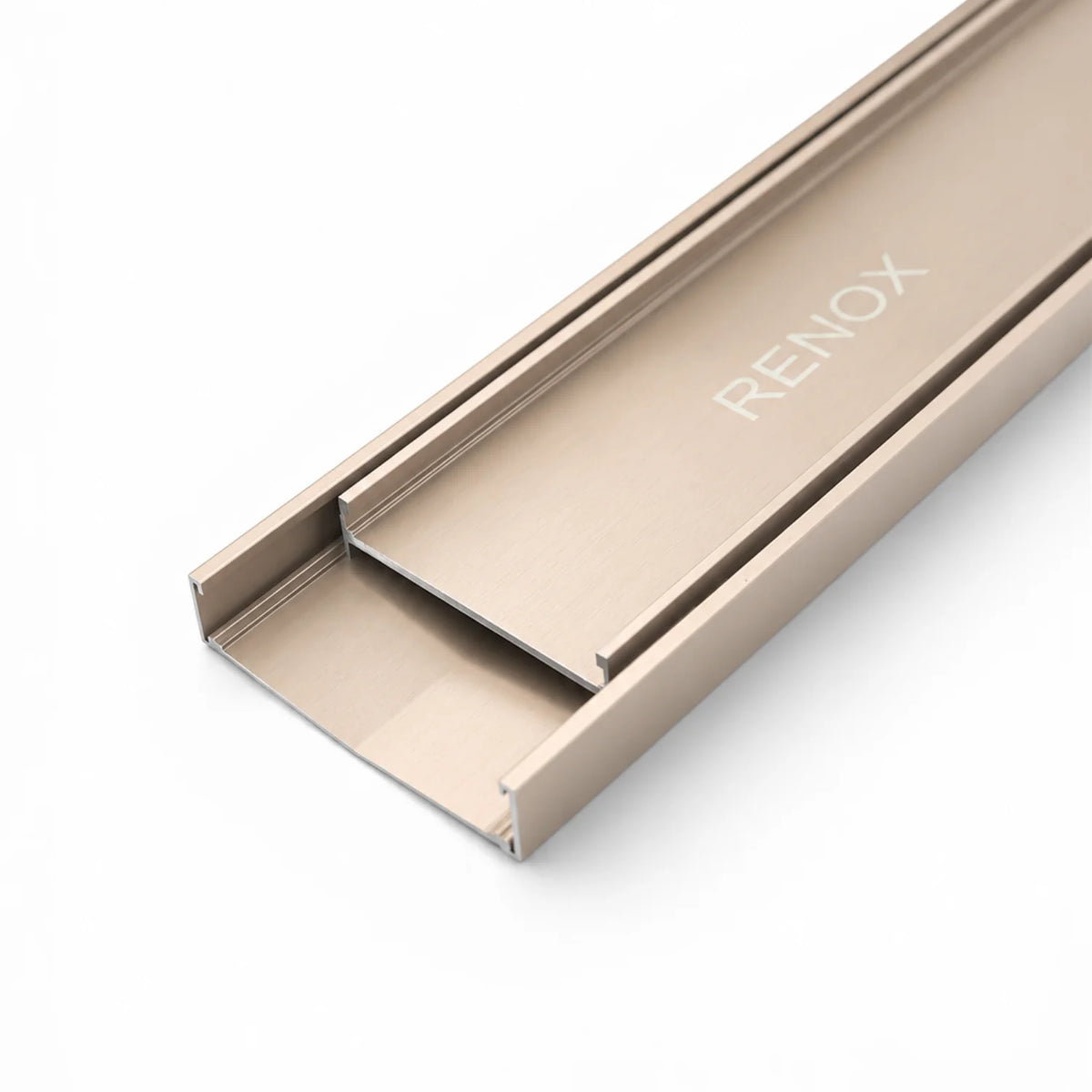

  • Brushed Cool Nickel and Brushed Champagne appear in the general finish range; depth availability is unconfirmed
  • Insert: removable roll-out feature for cleaning and maintenance
  • Outlet accessories illustrated: 40 mm and 72 mm; these measurements do not establish nominal waste-pipe connection sizes, compatibility or kit inclusion
  • Separate product families: 35 mm stone-tile V-drain for tiles up to 20 mm; 14 mm and 21 mm V-Grates
  • WaterMark: catalogue makes a general certification statement; no model-specific certificate or scope has been verified for these configurations
  • Manufacturer advertises a lifetime rustproof warranty; full terms and applicability require supplier confirmation, with installation and cleaning conditions applying
  • Flow capacity, load classification, installation detail, membrane termination and freight data require confirmation
Technical Data Sheet Warranty Information

Applications

Bathroom
Shower
Balcony

Technical Specifications

Key technical properties of this product. Refer to the Technical Data Sheet for complete installation and performance information.

Internal / External UseIndoor and outdoor tiled surface drainage
Tile ThicknessUp to 12 mm for standard 21 mm and 26 mm tile-insert V-drains
Outlet Accessories40 mm and 72 mm accessory dimensions only; pipe connection, compatibility and kit contents unconfirmed

RenoX Tile-Insert V-Drain FAQs

What is the difference between the 21 mm and 26 mm V-Drains?
These are two different channel depths. Both standard profiles are 100 mm wide and accommodate tiles up to 12 mm according to the latest catalogue. Select the depth to suit the installation detail; outlet dimensions are separate.
What tile thickness can the standard V-Drain accommodate?
The latest catalogue states tiles up to 12 mm for the standard tile-insert V-drain. The separate 35 mm stone-tile drain accommodates tiles up to 20 mm and is not part of this standard variant family.
Can the RenoX V-Drain be cut to length?
Yes. RenoX V-Drains are supplied in 4-metre lengths and can be cut to suit individual installations, including shorter shower and bathroom drainage runs.
What finishes are available?
The catalogue individually shows Brushed Silver, Brushed Matt Black, Brushed Gold, Brushed Gun-Metal, Brushed Antique, Brushed Warm Nickel and Brushed Copper Bronze at 21 mm and 26 mm depths. Brushed Cool Nickel and Brushed Champagne appear in the general range, but their available depths and ordering details need confirmation.
How does the V-Drain connect to the drainage outlet?
The catalogue shows 40 mm and 72 mm outlet accessories. It does not confirm their nominal pipe connections, compatibility with each kit or whether they are included. Obtain RenoX's connection and waterproofing detail before ordering; the V-drain does not replace a puddle flange or membrane termination.
