Barrier vs Matrix Systems Explained
Internal negative side waterproofing basement systems are often specified when the external face of a retaining wall cannot be accessed. They can reduce visible seepage, but they do not remove the source of moisture.
Where hydrostatic pressure persists, some internal systems perform far more reliably than others. Understanding the difference between a surface barrier approach and a matrix densification approach is critical to long-term performance.
What Is Negative-Side Waterproofing?
Waterproofing negative side refers to applying a treatment or membrane to the internal face of a wall that is retaining soil or groundwater.
Unlike positive-side waterproofing, which prevents water from entering the structure in the first place, negative systems attempt to manage moisture after it has already migrated into the masonry.
This distinction matters.
If groundwater or saturated backfill remains present, the wall continues to sit under hydrostatic load. That load becomes the governing variable in negative hydrostatic pressure waterproofing systems.
The key question becomes:
Where does that pressure go?
For a broader explanation of how hydrostatic pressure builds up behind walls and affects internal membranes, see our guide on “Basement Wall Leaking: Causes, Hydrostatic Pressure and Internal Waterproofing Options”.
When There Is Water Coming Through a Block Wall
Most internal remedial projects start with a homeowner or builder reporting water coming through block wall construction after heavy rain.
If the issue is intermittent — occurring only after storms — the cause may differ from sustained groundwater pressure. We explore these seasonal behaviours in more detail in “Why Is My Garage Wall Leaking After Rain”?
In typical block retaining walls:
-
Mortar beds and perp joints act as transmission pathways
-
Block cores may not be fully grouted
-
The slab–wall junction often becomes the first failure line
-
Clay backfill can hold moisture for extended periods
This creates sustained or intermittent negative hydrostatic pressure acting against the internal face.
Any internal coating system must perform under those conditions.
Two Common Internal Approaches
1. Surface Barrier Systems
These systems typically involve:
-
A dense epoxy or moisture-barrier primer
-
Followed by a flexible polymer-modified cementitious membrane
The epoxy layer forms a rigid, low-permeability surface film. The flexible cementitious layer provides crack-bridging capability and added protection.
This is fundamentally a containment strategy for waterproofing negative side applications. It attempts to block moisture movement at the internal face.
However, it does not reduce the amount of moisture present within the wall matrix itself.
2. Matrix Densification (Crystalline) Systems
These systems involve:
-
Applying a crystalline slurry into prepared masonry
-
Followed by a flexible cementitious membrane
The crystalline treatment reacts within the concrete or mortar matrix, reducing capillary permeability internally rather than forming a dense vapour barrier at the surface.
This approach reduces transmission pathways within the substrate before applying a final membrane layer.
What Happens Under Negative Hydrostatic Pressure?
In a typical 2.4m retaining wall with clay backfill and limited drainage:
-
Soil becomes saturated
-
Water pressure increases with depth
-
Moisture migrates through mortar joints, block webs and slab–wall junctions
Under negative hydrostatic pressure waterproofing conditions, internal coatings are subjected to:
-
Sustained water pressure
-
Vapour drive
-
Salt migration and crystallisation
-
Thermal and settlement movement
If saturation persists for weeks rather than hours, system compatibility becomes critical.

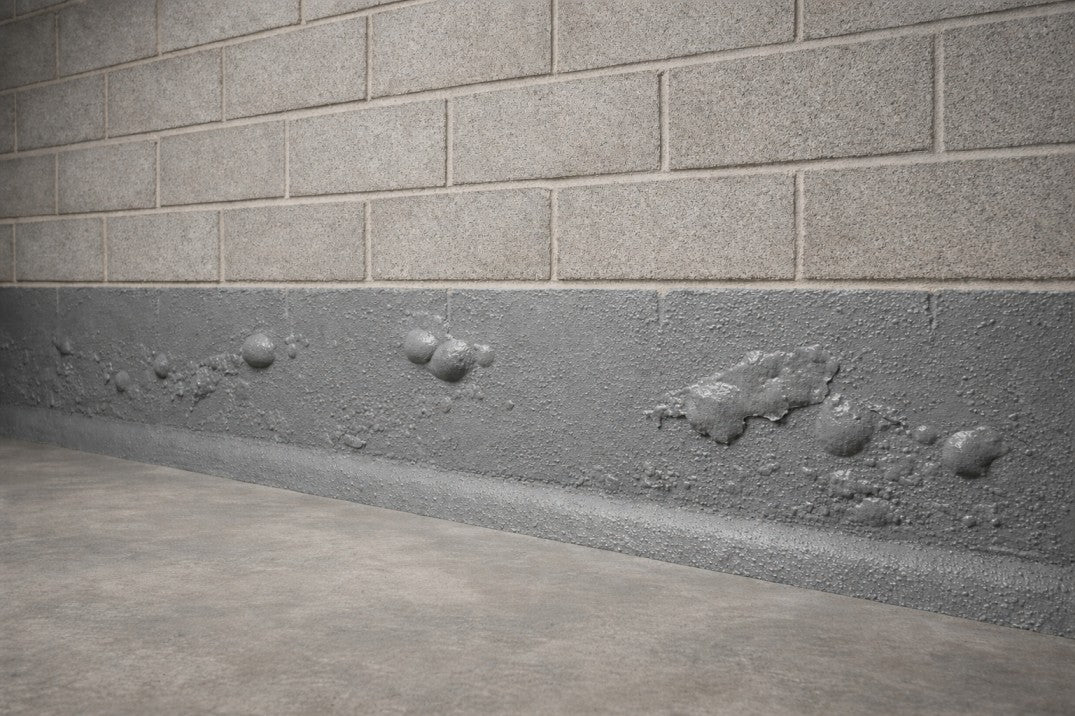

Why Negative-Side Systems Can Blister
Where a rigid moisture barrier is applied directly to masonry:
-
Vapour transmission at the internal face is significantly reduced
-
Moisture may remain active within the wall
-
Dissolved salts can crystallise behind the coating
Over time this may result in:
-
Osmotic blistering
-
Localised delamination along mortar beds
-
Hollow “drummy” sections
-
Moisture tracking above the membrane upstand
If you are seeing white powder deposits on internal walls prior to blistering, this is often a precursor indicator of salt migration. We explain this phenomenon in “White Powder on Garage or Basement Walls (Efflorescence): What It Means”.
In some cases, blocking transmission at one horizontal band simply causes water to migrate higher until it finds a new exit point.
This does not occur in every negative side waterproofing basement installation. Performance depends on pressure severity, substrate preparation and wall construction. However, sustained hydrostatic pressure increases the risk.
How Matrix Systems Behave Differently
Crystalline treatments used in negative hydrostatic pressure waterproofing aim to:
-
Reduce capillary flow within the substrate
-
Densify micro pathways
-
Allow limited vapour diffusion
Rather than trapping moisture behind a rigid film, the wall matrix itself is modified.
Where properly applied and where joints are correctly repaired, this approach can be more compatible with masonry retaining walls under moderate hydrostatic conditions.
However, it remains a compromise where external waterproofing or drainage correction is not feasible.
Drainage Remains the Governing Factor
Negative side waterproofing basement systems do not eliminate hydrostatic pressure.
Long-term performance is strongly influenced by:
-
Core filling of blockwork
-
Soil type and drainage capacity
-
Presence and condition of agricultural drains
-
External membrane condition
-
Duration of saturation
Without pressure relief, even the most robust internal negative hydrostatic pressure waterproofing system is managing the symptom, not the source.
Conclusion
The difference between a surface barrier system and a matrix densification system is not simply chemistry. It is building physics.
The critical question is not which membrane is thicker or more flexible. It is:
How is hydrostatic pressure being managed?
Where water remains active behind a retaining wall, internal waterproofing negative side applications must be selected with full understanding of pressure regime, wall construction and movement risk.
A structured diagnostic assessment should always precede product selection. If you are dealing with persistent internal dampness or recurring membrane blistering, consider arranging a site review before layering additional coatings over an unresolved pressure problem.
