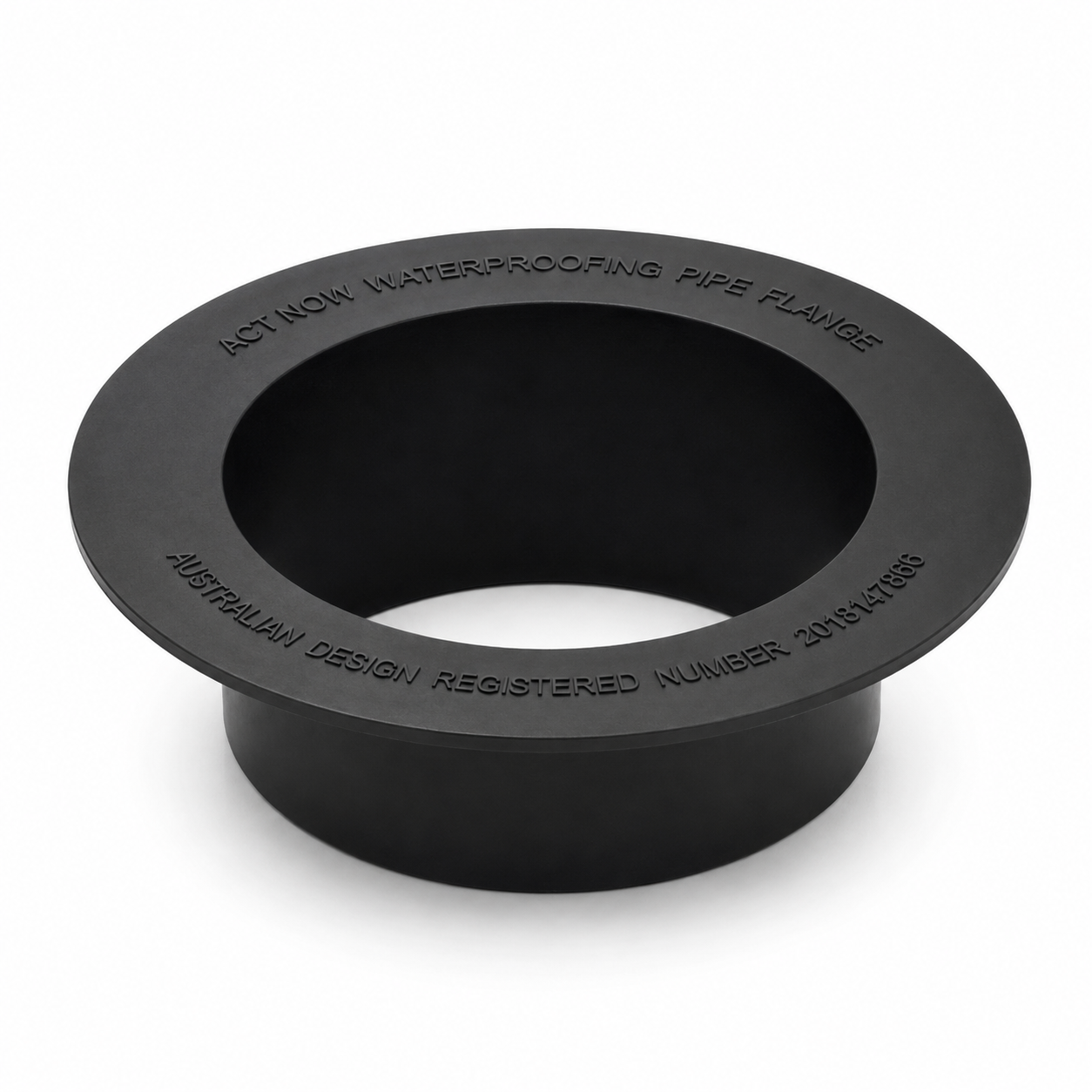

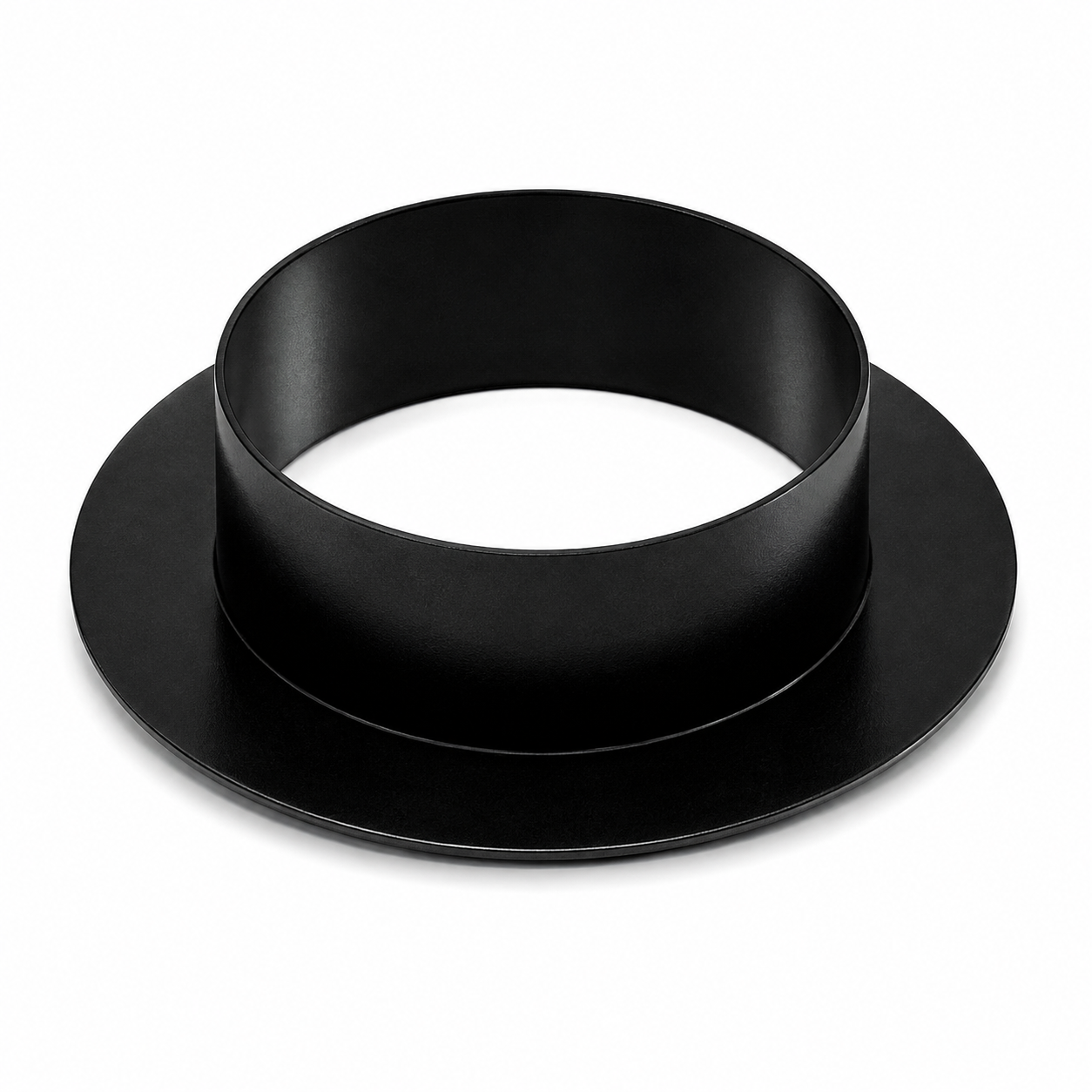

Actnow 100mm Rubber Puddle Flange
- Regular price
- $13.50 AUD
- Sale price
- $13.50 AUD
- Regular price
-
Shipping calculated at checkout.
Prices shown exclusive of GST.
- Flexible neoprene rubber moulds around the 100mm PVC drainage pipe.
- The integrated base provides a temporary drainage seal for wet-area flood testing.
- Provides a defined membrane termination between the concrete floor and PVC outlet.
Couldn't load pickup availability
Overview & Features
- Temporary flood-testing seal released by slicing the flange base
- Suitable for internal and external applications
- TDS identifies CodeMark certificate CM40377
- Compatible with most waterproofing membranes, joint sealants and MS bond breakers
Application Guide
- 1. Allow new concrete to cure for at least 28 days as stated in the TDS.
- 2. Cut the 100mm PVC floor-waste pipe level and flush with the slab surface.
- 3. Remove laitance, dirt, dust and contamination, then ensure the substrate is sound, clean and dry.
- 4. Solvent-wipe the rubber flange and prime the prepared substrate with a compatible primer.
- 5. Prime the internal PVC pipe wall with ACTFLEX Super Bond 007 or an approved PVC bonding agent and allow it to dry.
- 6. Apply ACTFLEX 75FC or V-Tech MS at the flange-to-substrate transition and press the flange into place.
- 7. Ensure joint sealant extrudes at least 10mm beyond the flange edge at all points, tool off excess and allow it to cure.
- 8. Apply the waterproofing membrane over the flange and at least 50mm down the internal flange wall.
- 9. Keep the flange clear of bond breakers and wall junctions, and provide positive falls to the outlet.
Specifications & Standards
- Material: Flexible neoprene rubber
- Pipe compatibility: 100mm PVC drainage outlet
- Use: Internal and external
- Flood testing: Integrated temporary seal; slice base to release water
- CodeMark certificate stated by TDS: CM40377
- TDS standard references: AS 3740:2021 Figure 4.3.1 and AS 4654.2 Figure 2.8.4
- Optimal application temperature: 10-26°C
- Internal fall guidance: 1:80 or 12.5mm per metre
- External fall guidance: 1:100 or 10mm per metre
- Minimum membrane downturn: 50mm
- Storage: Above ground in cool, dry, ventilated conditions at 10-26°C and 50% RH, away from sunlight
Complete Your System
-
Current product Actnow 100mm Rubber Puddle Flange $13.50 AUD In stock -
System component ACTFLEX 75FC – Polyurethane Sealant $14.50 AUD In stock
Applications
Bathroom
Shower
Laundry
Balcony
Rooftop
Internal Wet Areas
External Waterproofing
Technical Specifications
Key technical properties of this product. Refer to the Technical Data Sheet for complete installation and performance information.
| Classification | Flexible rubber waterproofing puddle flange |
|---|---|
| Suitable Substrates | Prepared concrete floors with 100mm PVC drainage outlets |
| Internal / External Use | Internal and external |
| Flood-Test Release | Slice the flange base to release retained test water |
| Sealant Extrusion | Minimum 10mm beyond the flange edge at all points |
