CY-1000 high-pressure injection pump for polyurethane and epoxy resin
CY-1000 high-pressure injection pump for polyurethane and epoxy resin
Concrete Protection

CY-1000 High-Pressure Injection Pump

$2,295.00 AUD
$2,295.00 AUD
Shipping calculated at checkout.

Prices shown exclusive of GST.

Online stock available

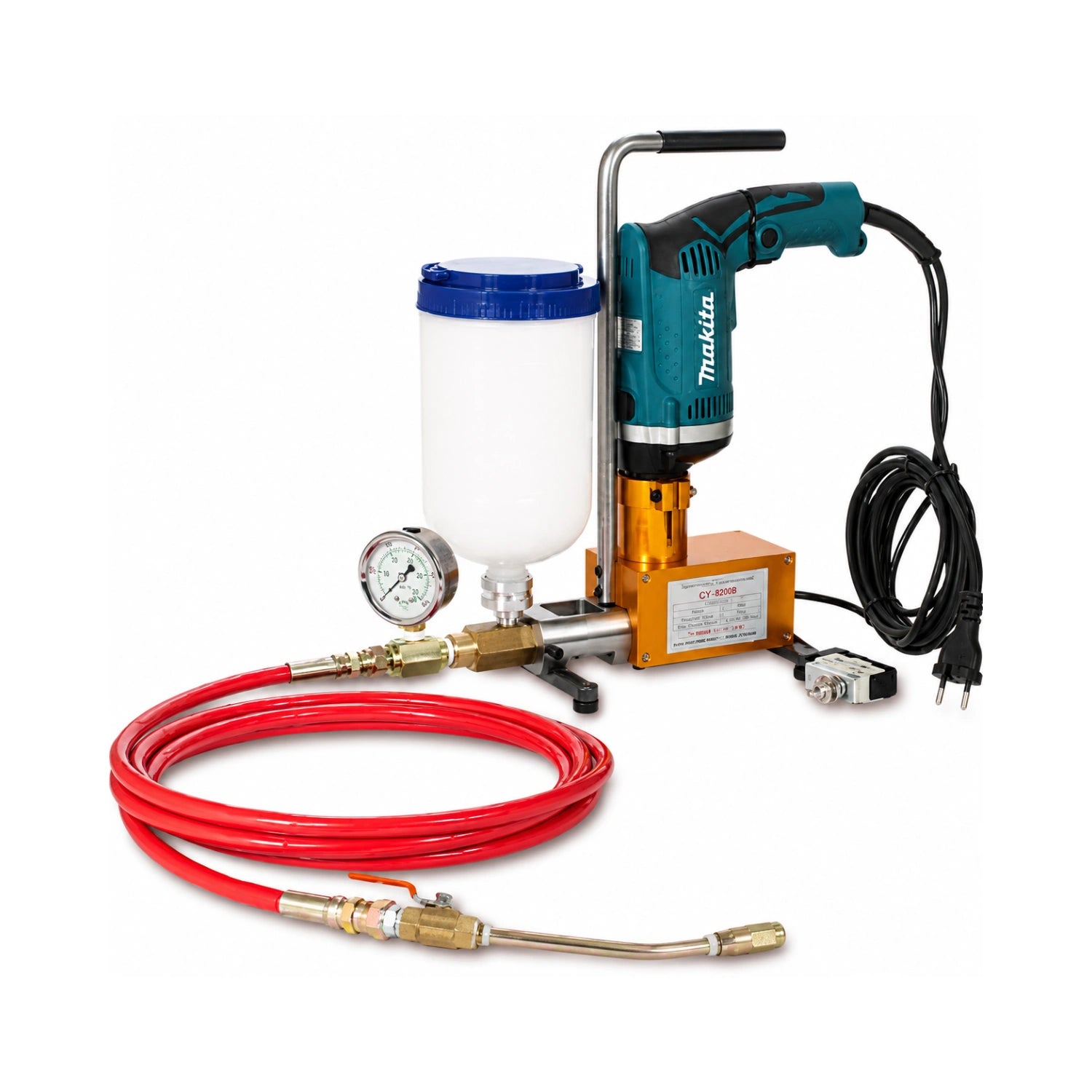

The CY-1000 is a compact high-pressure injection pump for pumping polyurethane foam and suitable epoxy injection resins into cracks and voids in concrete and masonry. Designed for remedial waterproofing and concrete repair, it combines a fluid hopper, pressure gauge, high-pressure hose, injection lance and dead-man switch in a portable 6 kg assembly.Recommended operating pressure is 30–50 MPa with a maximum flow rate of 400 cc/min. Correct resin compatibility, packer selection, cleaning and pressure control are essential for safe operation.
  • High-pressure delivery for crack injection
  • Compatible with suitable PU foam and epoxy resins
  • Portable 6 kg assembly for site use
Calculating estimated delivery

H2O AI Product Support

Technical and product guidance for the item you’re viewing.
  • High-pressure injection pump for compatible PU foam and epoxy resins
  • Recommended operating pressure: 30–50 MPa
  • Maximum flow rate: 400 cc/min
  • Compact, portable 6 kg assembly
  • Integrated hopper, pressure gauge, high-pressure hose, lance and dead-man switch
  • Drill-driven, single-speed configuration
  • Install mechanical injection packers by drilling at approximately 45° to intersect the crack around mid-depth; typical spacing is 150–250 mm depending on crack width and injection conditions. Connect the Zerk coupler, open the hose valve and operate the pump briefly. The guide notes approximately 30–40 MPa is commonly required during injection, with pressure topped up intermittently as material enters the crack. Close the hose valve only when changing between packers. After use, remove unused material and clean the pump in accordance with the injection-material requirements and the CY-1000 operating guide. The guide specifies xylene or gun wash flushing followed by engine oil for storage.
  • Drive: Electric drill, 1 speed
  • Power source: 220 V AC, 710 W — manufacturer source data
  • Maximum pressure: 610 kgf/cm² (approx. 59.8 MPa)
  • Recommended pressure: 30–50 MPa
  • Maximum flow rate: 400 cc/min
  • Weight: Approx. 6 kg
  • Typical injection-port spacing: 150–250 mm, subject to crack conditions
Technical Data Sheet

Complete Your System

  • CY-1000 high-pressure injection pump for polyurethane and epoxy resin
    Current product CY-1000 High-Pressure Injection Pump $2,295.00 AUD Available to order
  • H2O Xpanda PU SemiFlex
    System component H2O Xpanda PU SemiFlex $500.00 AUD Available to order
  • H2O Xpanda PU SuperFlex
    System component H2O Xpanda PU SuperFlex $195.00 AUD Available to order
  • Crack Injection Packers
    System component Crack Injection Packers $169.95 AUD Available to order
System total

Applications

Below Ground
Negative Waterproofing

Technical Specifications

Key technical properties of this product. Refer to the Technical Data Sheet for complete installation and performance information.

ClassificationHigh-pressure single-component injection pump
CoverageNot applicable — equipment; injection consumption is determined by crack geometry and injection material
Suitable SubstratesConcrete and masonry injection applications, subject to injection-material compatibility
Internal / External UsePortable construction equipment for internal and external remedial works
View Technical Data Sheet

CY-1000 Injection Pump FAQs

What materials can the CY-1000 inject?
The CY-1000 is designed for compatible polyurethane foam injection materials and suitable epoxy injection resins. Confirm the resin manufacturer's viscosity, pump and cleaning requirements before use.
What operating pressure is recommended for the CY-1000?
The operating guide recommends 30–50 MPa. During crack injection, approximately 30–40 MPa is commonly used initially, with pressure topped up intermittently as material enters the crack.
What is the maximum flow rate of the CY-1000?
The stated maximum flow rate is 400 cc/min.
How are injection packers typically installed for CY-1000 injection?
The operating guide recommends drilling at approximately 45 degrees to intersect the crack near mid-depth. Typical injection-port spacing is 150–250 mm, adjusted to the crack width, substrate and injection material.
How should the CY-1000 be cleaned after use?
The operating guide calls for removing unused injection material, flushing with approximately 1 L of xylene or gun wash, recycling the solvent for about three minutes, then introducing approximately 0.5 L of engine oil for storage. Follow the injection-material SDS and disposal requirements.
Can the hose valve be closed while the CY-1000 pump is running?
No. The operating guide warns that the pressure-hose valve should only be closed when changing between packers. Operating the pump with the valve closed can damage the hose or valve.
