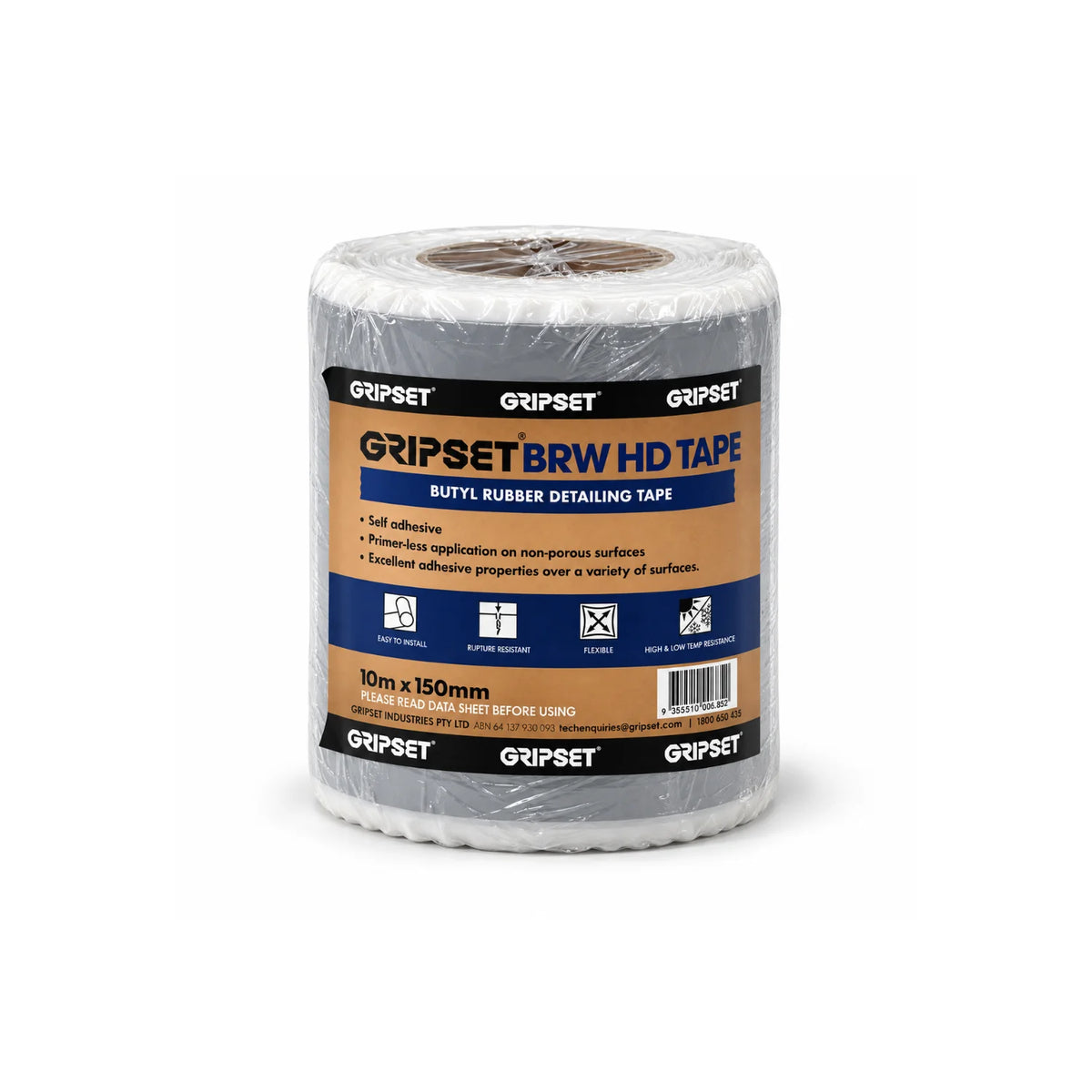

Gripset BRW HD Tape 150 mm x 10 m roll
Gripset BRW HD Tape 150 mm x 10 m roll
Gripset

Gripset BRW HD Tape 150mm × 10m

$55.00 AUD
$55.00 AUD
Shipping calculated at checkout.

Prices shown exclusive of GST.

Online stock available
Gripset BRW HD Tape is a self-adhesive butyl rubber detailing tape with a laminated HDPE facing, supplied in a 150 mm × 10 m roll. It is used with the Gripset BRW HD sheet membrane to form bond breakers at floor and wall junctions and to detail corners, pipes and penetrations. Centre the tape across the joint and press it firmly with a hand roller; the BRW HD sheet TDS specifies at least 50 mm overlap onto floor sheets. Prepare and prime the underlying surface as required by the BRW HD system instructions. Keep the completed detail covered and protected from UV exposure; check the dedicated tape TDS before specifying other uses.
  • Self-adhesive tape avoids mixing and wet applied curing at the detail.
  • Forms the specified bond breaker in Gripset BRW HD sheet systems.
  • A 150 mm width allows the tape to span junctions and return onto adjoining surfaces.
Calculating estimated delivery

H2O AI Product Support

Technical and product guidance for the item you’re viewing.
  • Self-adhesive butyl rubber detailing tape with laminated HDPE facing.
  • 150 mm wide × 10 m long.
  • Designed for junctions and corner detailing with Gripset BRW HD sheet membrane.
  • Acts as a system bond breaker; apply by removing release paper and pressing firmly with a hand roller.
  • Covered system use; protect from UV.
  • 1. Prepare the substrate and install the BRW HD floor sheet according to the current Gripset BRW HD system instructions. Prime surfaces where required by that system; suitably prepared sound non-porous metal, plastic and glazed surfaces generally do not require primer.
  • 2. Measure and cut BRW HD Tape to the required joint length. Gradually remove its release paper and centre it across the junction, returning approximately half the width onto the floor membrane and half up the wall.
  • 3. Maintain at least 50 mm overlap onto the BRW HD floor sheet. Roll the tape firmly with a handheld vinyl roller to remove air pockets and creases.
  • 4. Detail corners and suitable penetrations as shown in Gripset's current BRW installation manual. Cover and protect the completed system from UV and damage.
  • Gripset BRW HD Tape; 150 mm × 10 m roll; manufacturer catalogue code GWS228. Self-adhesive butyl rubber with laminated HDPE facing. In the BRW HD sheet system, centre the tape across a junction, maintain at least 50 mm overlap onto the floor sheet and roll firmly to remove air pockets. Tape-specific thickness, classification, service temperature and test results have not been verified from a dedicated tape TDS.

Complete Your System

System total

Applications

Balcony
Podium
Planter Box
Retaining Wall
External Waterproofing

Gripset BRW HD Tape FAQs

What is BRW HD Tape used for?
It is a 150 mm wide self-adhesive butyl detailing tape used as a system bond breaker and for junctions, corners and local detailing with Gripset BRW HD sheet membrane.
What size is the roll?
The Gripset catalogue identifies BRW HD Tape as a 150 mm × 10 m roll, manufacturer code GWS228.
How is it installed at a floor-to-wall junction?
The BRW HD sheet TDS says to centre the tape across the junction, return half its width up the wall and half over the floor membrane, and roll it firmly. Provide at least 50 mm overlap onto the BRW HD floor sheet.
Can it be used around pipes and penetrations?
Yes. The BRW HD sheet TDS permits BRW HD Tape as an individual sealing patch around pipes and fixtures where additional protection is required. Prepare the surface and press the detail firmly.
Can it be left exposed or tiled directly?
Keep BRW HD system details protected from UV. The supplied sheet TDS says BRW HD surfaces are not intended as exposed or trafficable finishes and cannot directly support tiles, paint or decorative coatings. Obtain Gripset's tape-specific TDS and system detail before specifying a finish over the tape.
