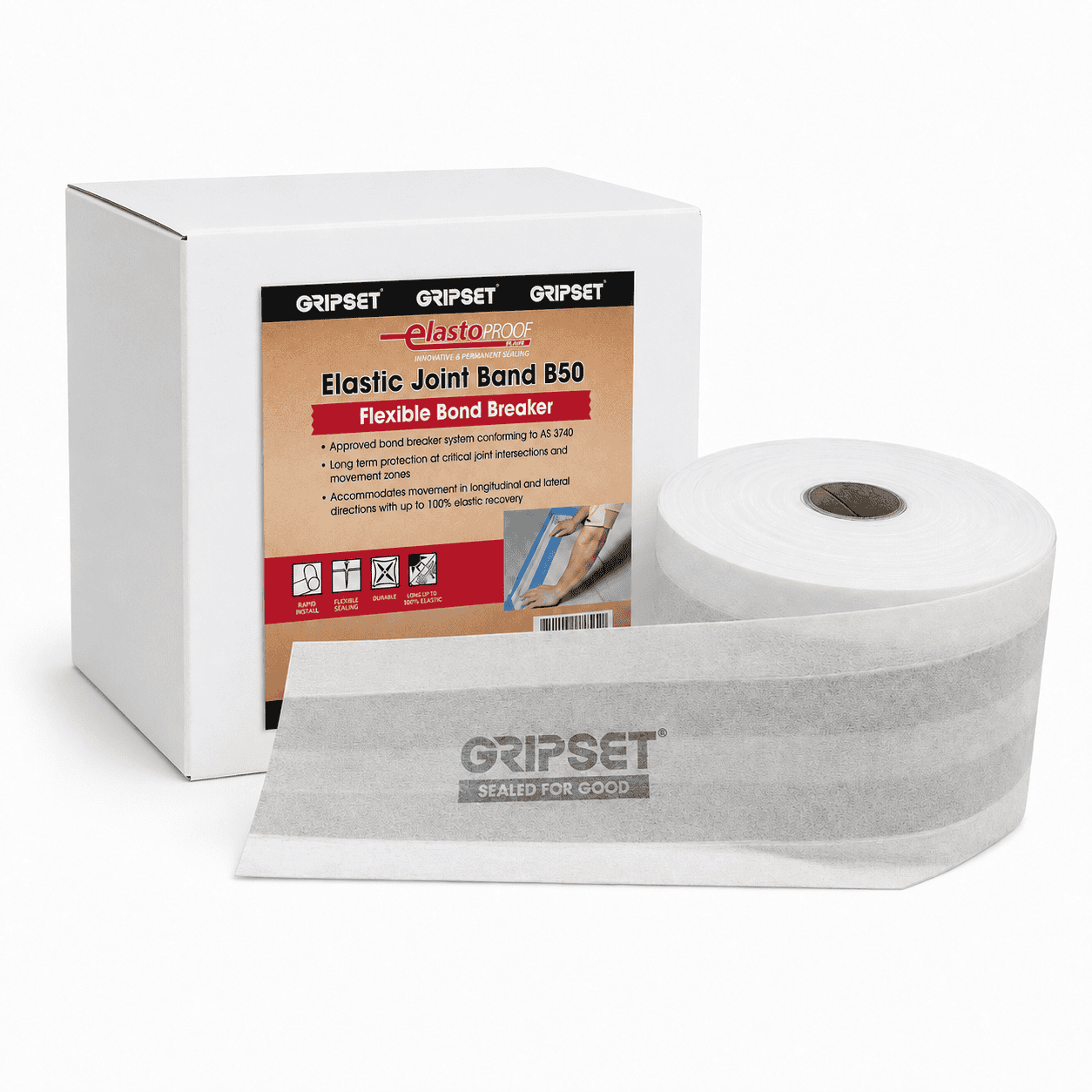

Gripset Elastoproof B50 – Flexible Bond Breaker Joint Band
- Regular price
- $49.50 AUD
- Sale price
- $49.50 AUD
- Regular price
-
Shipping calculated at checkout.
Prices shown exclusive of GST.
Online stock available
- Forms the required flexible bond breaker at critical waterproofing junctions and joints.
- The central NBR zone accommodates multidirectional movement with up to 100% elastic recovery.
- Polyester fleece edges embed securely into compatible Gripset liquid membranes.
Couldn't load pickup availability
Overview & Features
- Up to 100% elastic recovery
- Rupture, chemical and water-resistant construction
- Suitable for areas subject to full immersion
- Compatible with Gripset Class I, Class II and Class III membranes
- Fleece edges embed into wet liquid membrane while the central rubber zone remains unbonded
- Water pressure resistance of 3 bar
- Temperature resistance from -20°C to 90°C
- Not compatible with solvent-based materials and not suitable as a UV-exposed joint seal
Application Guide
- 1. Confirm that the selected Gripset liquid membrane is suitable for the substrate, exposure and joint movement.
- 2. Prepare the substrate and complete any required priming in accordance with the membrane TDS.
- 3. Measure and cut the joint band for wall-to-floor junctions, abutments and movement-joint details.
- 4. Apply the first membrane coat approximately 150 mm up the wall and onto the floor or adjoining substrate.
- 5. Embed the polyester fleece edges into the wet membrane and fully wet them out, removing all trapped air.
- 6. Leave the rear central rubber section unbonded so the flexible zone can accommodate movement.
- 7. Use a minimum 50 mm overlap where band lengths are joined. Use the specified Elastoproof 90° and 270° prefabricated corners where available; otherwise cut and fold the bottom leg while keeping all fleece fully bonded.
- 8. Complete the remaining membrane coats in accordance with the selected membrane TDS.
- 9. Apply only when the surface temperature is between 5°C and 30°C. Do not use solvent-based materials and do not leave the band UV exposed externally.
Specifications & Standards
- Product type: Flexible bond-breaker joint band
- Colour: Grey
- Rubber: NBR (acrylonitrile butadiene rubber)
- Carrier edging: Polyester fleece with lateral flexibility
- Total width: 120 mm
- Thickness: 0.6-0.8 mm
- Rubber width: 70 mm span with 20 mm central stretch zone
- Material weight: 50 g/m
- Shore A hardness: 65
- Temperature resistance: -20°C to 90°C
- Tensile strength: >1.0 N/mm² lateral and >7.0 N/mm² longitudinal to DIN 53504
- Rupture strain: >208% lateral and >48% longitudinal to DIN 53504
- Moisture vapour transmission resistance coefficient µ: 8.4
- Equivalent air thickness sd: 5.0
- Water pressure resistance: 3 bar
- Fire class: B3, F
- Starting joint width: 20 mm maximum
- Movement capacity: No more than 50% of the starting joint width
- Application surface temperature: 5°C to 30°C
- Packaging: 120 mm × 10 m roll (B10) and 120 mm × 50 m roll (B50)
Product Documents
Complete Your System
-
Current product Gripset Elastoproof B50 – Flexible Bond Breaker Joint Band $49.50 AUD In stock -
Gripset 38FC – Fast Curing Waterproofing Membrane
-
Gripset BRW PFN – Butyl Sheet Membrane
Applications
Internal Wet Areas
External Waterproofing
Technical Specifications
Key technical properties of this product. Refer to the Technical Data Sheet for complete installation and performance information.
| Classification | Approved bond-breaker system conforming to AS 3740 |
|---|---|
| Coverage | 10 or 50 lineal metres per roll, less minimum 50 mm joins and project detailing |
| Elongation at Break | Rupture strain >208% lateral and >48% longitudinal to DIN 53504 |
| Tensile Strength | >1.0 N/mm² lateral and >7.0 N/mm² longitudinal to DIN 53504 |
| Internal / External Use | Internal, immersed and protected external applications; do not leave UV exposed |
| Water pressure resistance | 3 bar |
| Joint movement parameters | 20 mm maximum starting width; movement no more than 50% of starting width |
