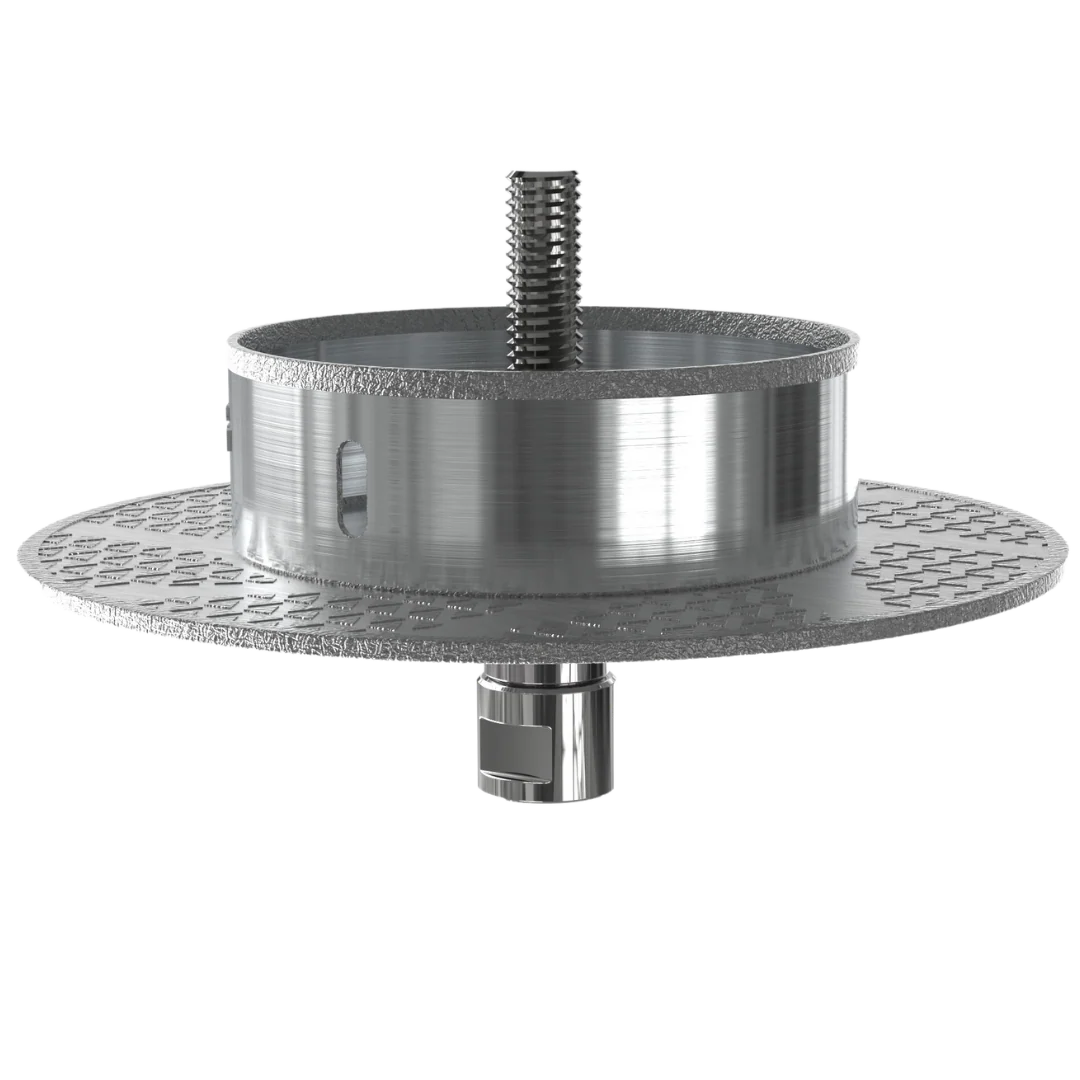

Innovative Tools 230mm FC puddle flange recess disc with integrated 150mm hole saw
230mm dual FC sheet disc attachment with flywheel guide
Innovative Tools 230mm FC puddle flange recess disc with integrated 150mm hole saw
230mm dual FC sheet disc attachment with flywheel guide
Innovative Tools 230mm FC puddle flange recess disc with integrated 150mm hole saw
230mm dual FC sheet disc attachment with flywheel guide
Innovative Tools Australia

230mm FC Sheet Disc Attachment

$347.00 AUD
$347.00 AUD
Shipping calculated at checkout.

Prices shown exclusive of GST.

Only 1 left — order now!
This 230mm FC Sheet Disc Attachment is a replacement puddle flange recess cutting assembly for Innovative Tools Australia FC recess kit owners. Replace the worn attachment and reuse your compatible 280mm dust shroud. Match your existing kit 230mm Single: replacement for the 230mm Single kit. Recess disc and hole saw assembly for outlets with no waste pipe installed. 230mm Dual: replacement for the 230mm Dual kit. Cutting assembly with flywheel guide for outlets with a compatible waste pipe already installed. Attachment only: dust shroud, grinder, vacuum and puddle flange are not included. Confirm flange profile, guide fit and permitted sheet recess depth before cutting. Use compatible dust extraction and required PPE. Need the attachment and shroud together? See the FC Sheet Puddle Flange Recess Kit.
  • Replace the cutting assembly without repurchasing the full kit
  • Integrated 150mm hole saw and 230mm recess disc
  • Forms a controlled recess for 230mm puddle flanges
Disc Attachment:
Calculating estimated delivery

H2O AI Product Support

Technical and product guidance for the item you’re viewing.
  • Replacement cutting assembly for the 230mm FC Sheeting Puddle Flange Recess Kit
  • 230mm diamond-segmented recess disc
  • Integrated 150mm diamond-tip hole saw
  • Designed for compressed fibre-cement flooring
  • Forms recesses around 230mm PVC puddle flanges
  • Suits 230mm (9 inch) angle grinders with M14 thread
  • Uses a 14mm pre-drilled pilot hole for centring
  • Pre-drill a 14mm pilot hole to centre the cutting assembly. Install the disc on a compatible 230mm angle grinder with an M14 thread and use it with the compatible dust shroud, suitable extraction and required PPE. This disc is intended for FC sheeting only; use the separate concrete recess system for concrete substrates.
  • Product type: FC puddle flange recess disc assembly
  • Recess disc diameter: 230mm
  • Integrated hole saw: 150mm
  • Cutting edge: Segmented diamond tip
  • Compatible grinder size: 230mm (9 inch)
  • Grinder connection: M14 thread
  • Required pilot hole: 14mm
  • Suitable substrate: Compressed fibre-cement sheeting
  • Puddle flange size: 230mm PVC
  • Supply scope: Recess disc and integrated hole saw assembly only

Complete Your System

System total

Technical Specifications

Key technical properties of this product. Refer to the Technical Data Sheet for complete installation and performance information.

ClassificationFC puddle flange recess disc assembly
Suitable SubstratesCompressed fibre-cement sheeting
Internal / External UseInternal and external wet-area FC sheet floors
