Shop professional puddle flange recess kits and replacement disc attachments for preparing accurate recesses in concrete and FC / fibre cement sheet substrates. The range includes complete concrete recess kits, FC sheet recess kits and standalone puddle flange recess discs for compatible installation configurations.

Puddle Flange Recess Kits & Discs

Showing 4 of 4 products

Filter and sort

Filter and sort

4 Results

Showing 4 of 4 products
  • Concrete Puddle Flange Recess Kit
    Regular price
    $370.00 AUD - $715.00 AUD
    Sale price
    $370.00 AUD - $715.00 AUD
    Regular price
    $390.00 AUD - $730.00 AUD
  • FC Sheet Puddle Flange Recess Kit
    Regular price
    $510.00 AUD - $550.00 AUD
    Sale price
    $510.00 AUD - $550.00 AUD
    Regular price
  • Concrete Puddle Flange Recess Disc
    Regular price
    $170.00 AUD - $510.00 AUD
    Sale price
    $170.00 AUD - $510.00 AUD
    Regular price

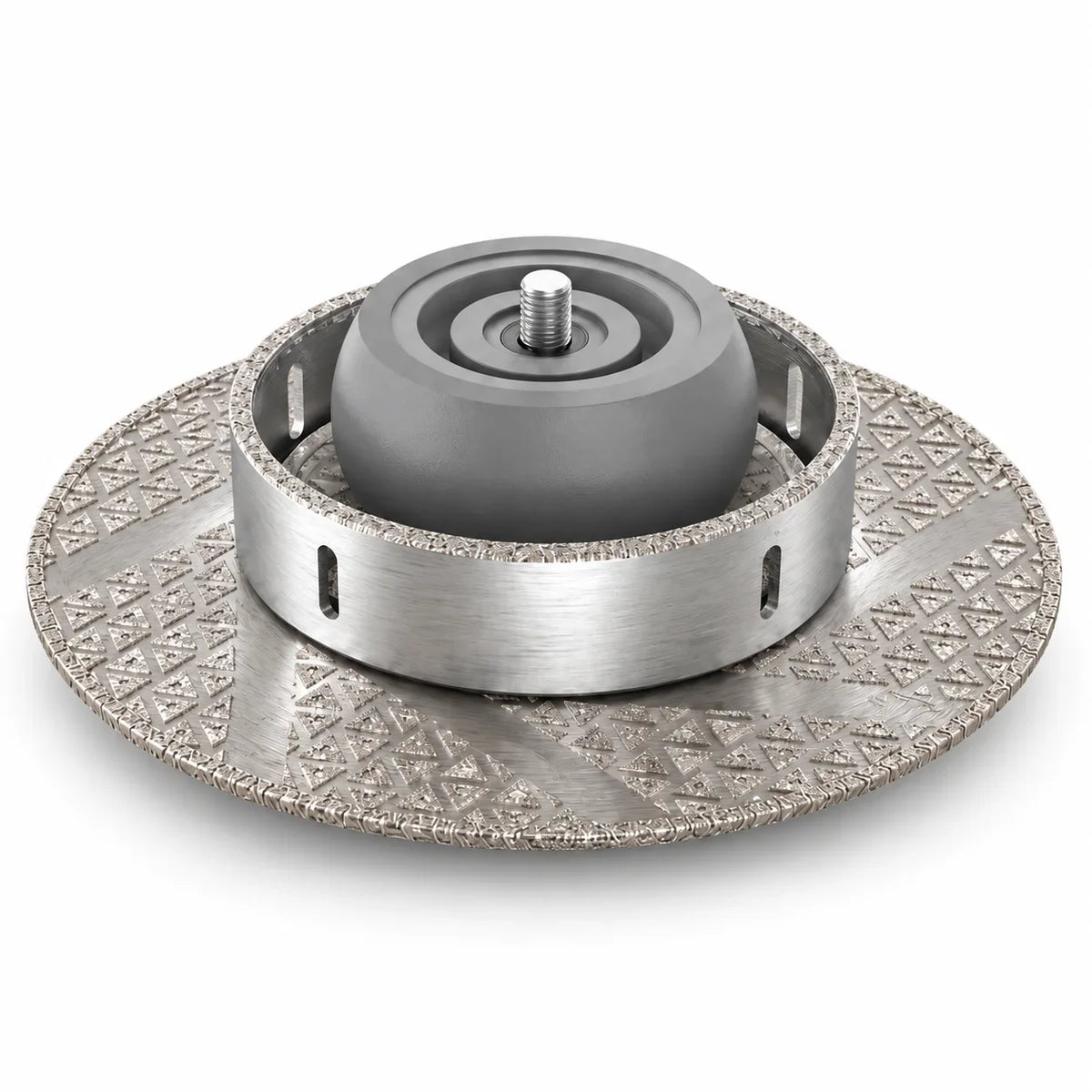

  • 230mm FC Sheet Disc Attachment
    Regular price
    $347.00 AUD
    Sale price
    $347.00 AUD
    Regular price
Common Trade Questions

Choosing your puddle flange recess kit

Start with the substrate. Choose the Concrete Puddle Flange Recess Kit for concrete slabs, or the FC Sheet Puddle Flange Recess Kit for compatible compressed fibre cement flooring. Then match the cutter to the flange profile and, for FC kits, whether a waste pipe is already installed at the outlet. Check that the flooring manufacturer permits the required recess depth.

Choose 150mm for Actnow 100mm rubber puddle flanges, 200mm for Puddle Pro 100mm puddle flanges, or 230mm for Allproof stepped leak-control puddle flanges. These are cutter diameters, not pipe sizes. Other flanges must match the cutter diameter, recess depth and underside profile before compatibility can be confirmed.

Choose 230mm Single when no waste pipe is installed at the outlet: its recess disc and hole saw form the opening and flange recess. Choose 230mm Dual when a compatible waste pipe is already installed beneath the sheet: its flywheel guide centres the cutting assembly in that pipe. Confirm pipe size, position and guide fit before ordering.

No. The 230mm concrete dual-disc kit forms concentric 150mm and 230mm recesses for a stepped flange profile. A flat flange or another brand is not automatically compatible because its diameter fits. Check the exact flange dimensions and underside profile; an oversized or incorrectly shaped recess may leave the flange unsupported.

Buy a complete kit if you need the cutting assembly and compatible dust shroud. If you already own the matching ITA kit, buy the replacement disc attachment and reuse your compatible shroud. For FC replacements, match 230mm Single to the Single kit and 230mm Dual to the Dual kit; the compatible 280mm shroud is not supplied with attachment-only purchases.

Use the tool specified for the substrate. The concrete and FC cutting assemblies serve different applications and should not be treated as interchangeable. FC kits also require confirmation of sheet thickness and permitted recess depth. A 230mm diameter alone does not establish substrate or flange compatibility.

Confirm the substrate, exact flange model and underside profile, required recess depth, grinder compatibility and suitable dust extraction. For FC Dual kits, also check the installed waste pipe and flywheel guide fit. If unsure, send H2O Supplies the flange model, dimensions and photos of the outlet before purchasing.
