Concrete Puddle Flange Recess Disc
- Regular price
- $170.00 AUD
- Sale price
- $170.00 AUD
- Regular price
-
Shipping calculated at checkout.
Prices shown exclusive of GST.
- Creates a size-specific recess for the nominated 100mm puddle flange system.
- The turbo diamond design is made for controlled recessing in concrete substrates.
- Three disc sizes cover compatible Actnow, Puddle Pro and Allproof flange installations.
Couldn't load pickup availability
Overview & Features

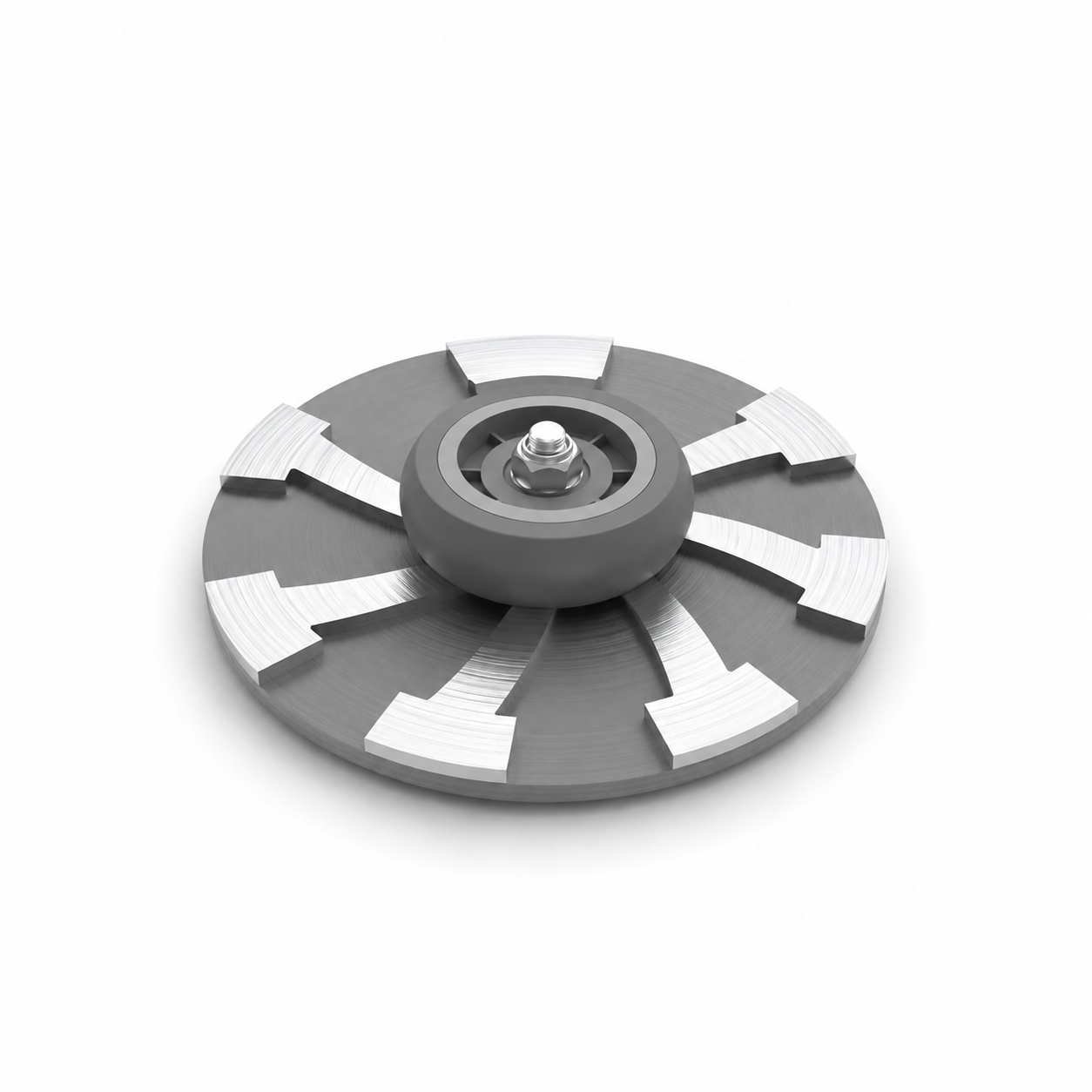

- 150mm variant includes a 100mm wheel bearing to locate in the PVC outlet
- Must be used with the dust collecting wheel guard and auto-clean vacuum
- Supplied as a replacement or spare disc assembly
Application Guide
- 1. Switch off and unplug the grinder before fitting components.
- 2. Inspect the dust collecting wheel guard and do not use it if damaged, cracked or deformed.
- 3. Fit and secure the dust collecting wheel guard in accordance with the manufacturer instructions.
- 4. Turn the recess disc clockwise onto the grinder locking thread and confirm secure attachment.
- 5. Connect an auto-clean vacuum to the dust shroud and check operation.
- 6. Locate the disc's wheel bearing in the 100mm PVC drainage outlet.
- 7. Start the grinder without applying excessive pressure, then increase pressure gradually while continuously checking recess depth.
- 8. Switch off and unplug the grinder before removal; use the spindle lock and a 22mm open-end wrench as instructed.
Specifications & Standards
- Product type: Turbo diamond concrete recess disc

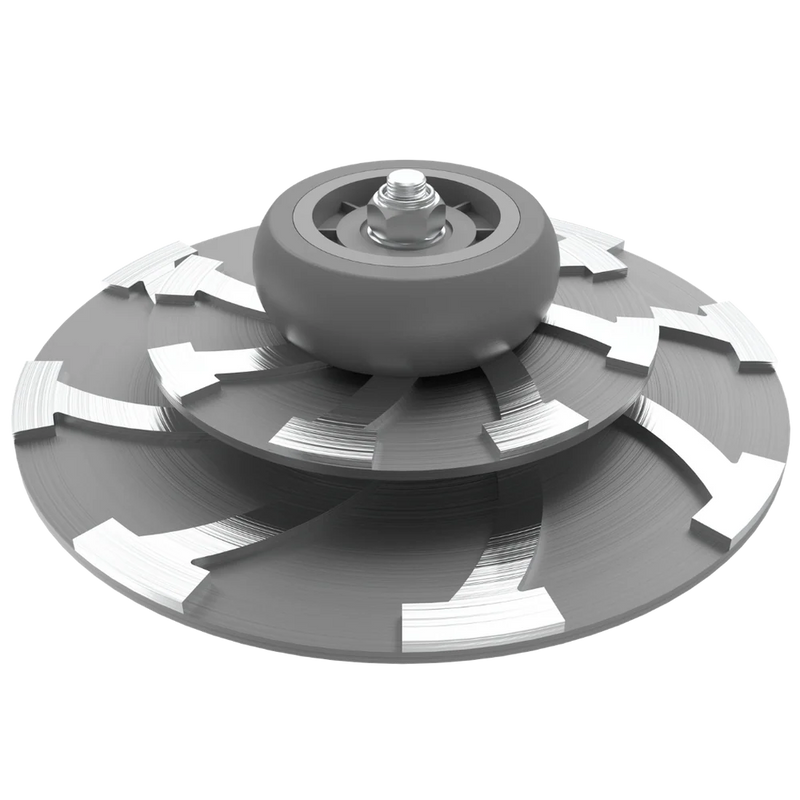

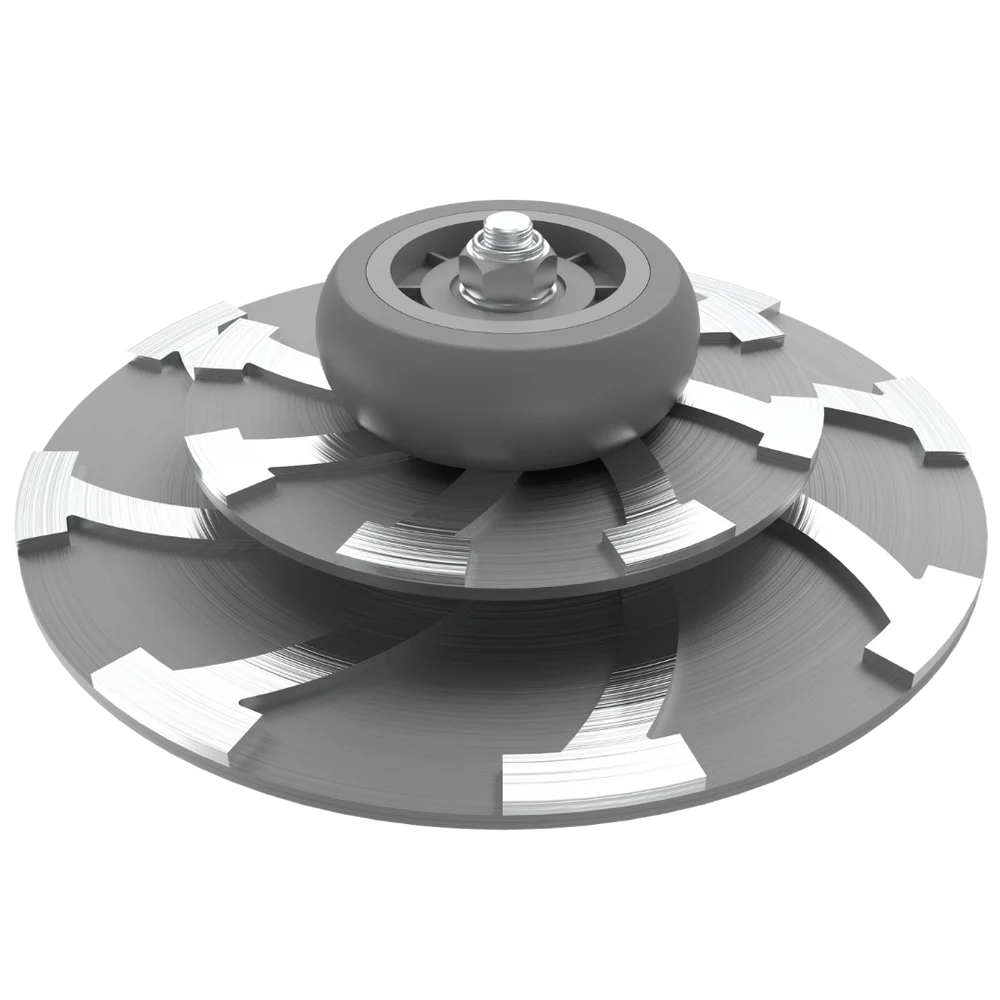

- Disc sizes: 150mm, 200mm and 230mm
- Substrate: Concrete only
- Outlet size: 100mm PVC drainage outlet
- 150mm disc compatibility: Actnow 100mm Rubber Puddle Flange

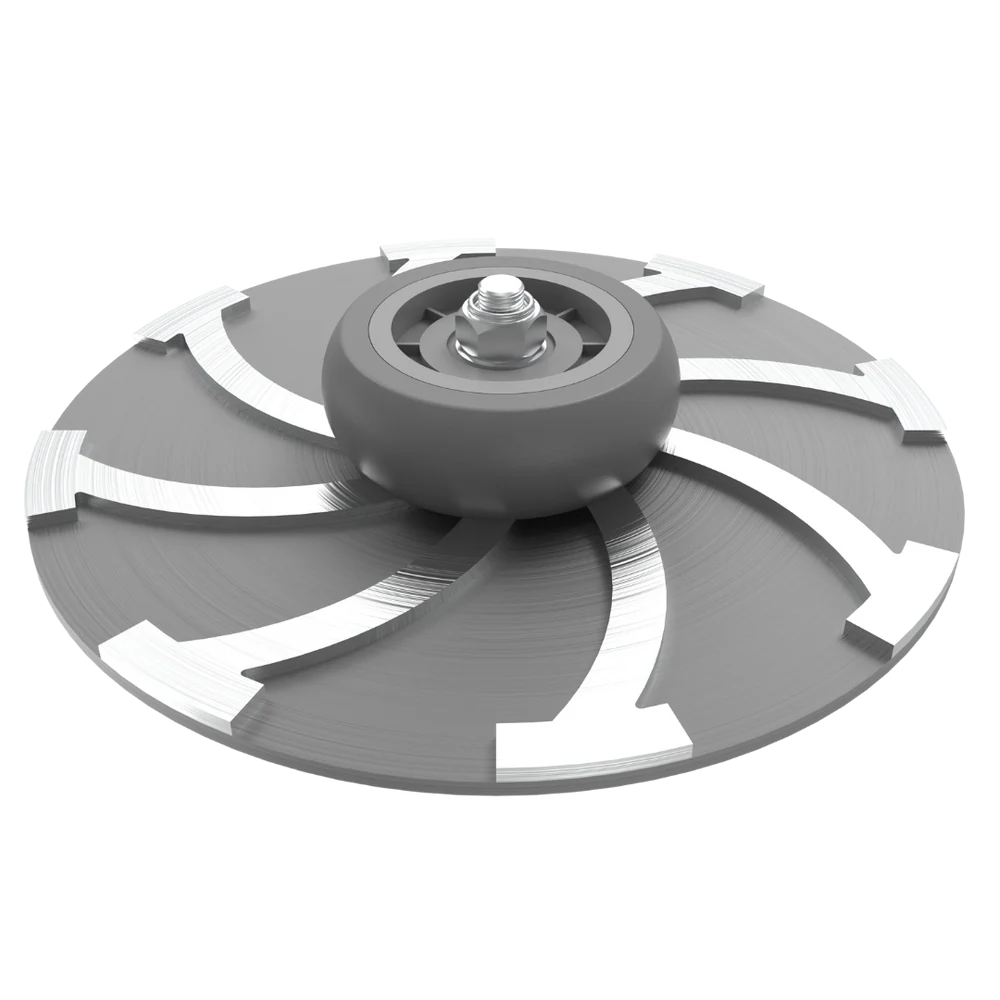

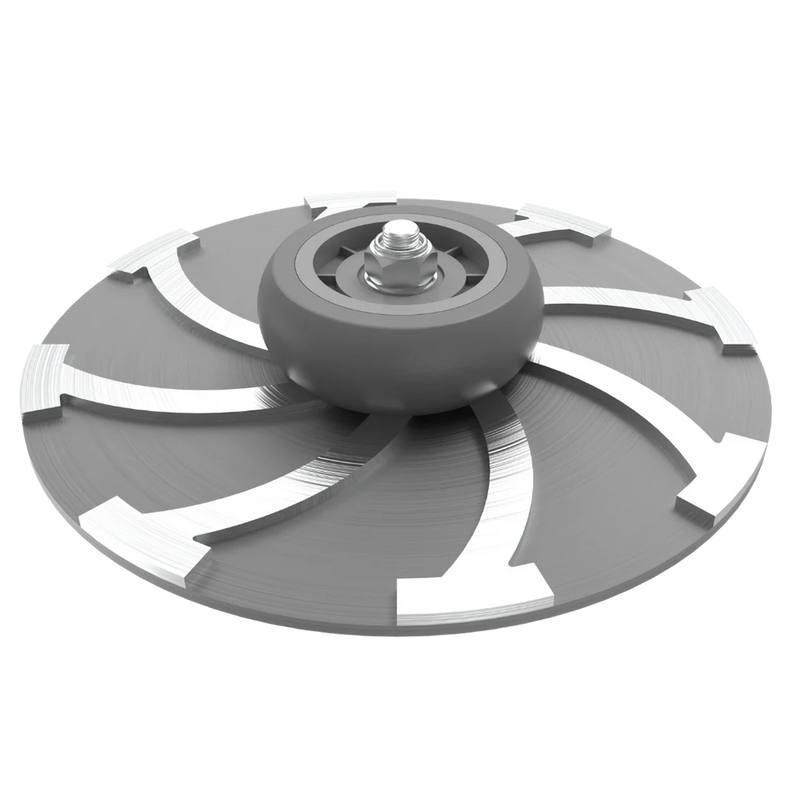

- 200mm disc compatibility: Puddle Pro 100mm Puddle Flange
- 230mm disc compatibility: Allproof 100mm Leak Control Flange
- 150mm guide bearing: 100mm
- Configuration: Replacement or spare disc assembly only
- Required ancillary equipment: Dust collecting wheel guard, auto-clean vacuum and compatible grinder
Complete Your System
-
Current product Concrete Puddle Flange Recess Disc $170.00 AUD In stock -
System component Puddle Pro 100mm Retrofit Puddle Flange $15.00 AUD In stock -
System component Allproof 100mm Leak Control Puddle Flange $10.95 AUD In stock
Applications
Bathroom
Shower
Laundry
Balcony
Podium
Internal Wet Areas
Technical Specifications
Key technical properties of this product. Refer to the Technical Data Sheet for complete installation and performance information.
| Classification | Concrete puddle flange recessing disc |
|---|---|
| Suitable Substrates | Concrete |
| Internal / External Use | Internal and external concrete floor applications |
| Removal Tool | 22mm open-end wrench |
| Mounting Direction | Clockwise onto the grinder locking thread |
