If your garage wall is leaking after rain, you’re not alone. This is one of the most common waterproofing issues we see in garages, basements and other below-ground structures, particularly where walls are exposed to sustained ground moisture.
Leaks rarely start as dramatic water flow. They usually begin as damp garage walls, dark staining, or slow water seeping through concrete walls after heavy or prolonged rainfall. Left untreated, these symptoms often worsen over time and can lead to ongoing moisture damage, mould growth, and deterioration of the masonry itself.
Understanding why it’s happening is the first step to fixing it properly.

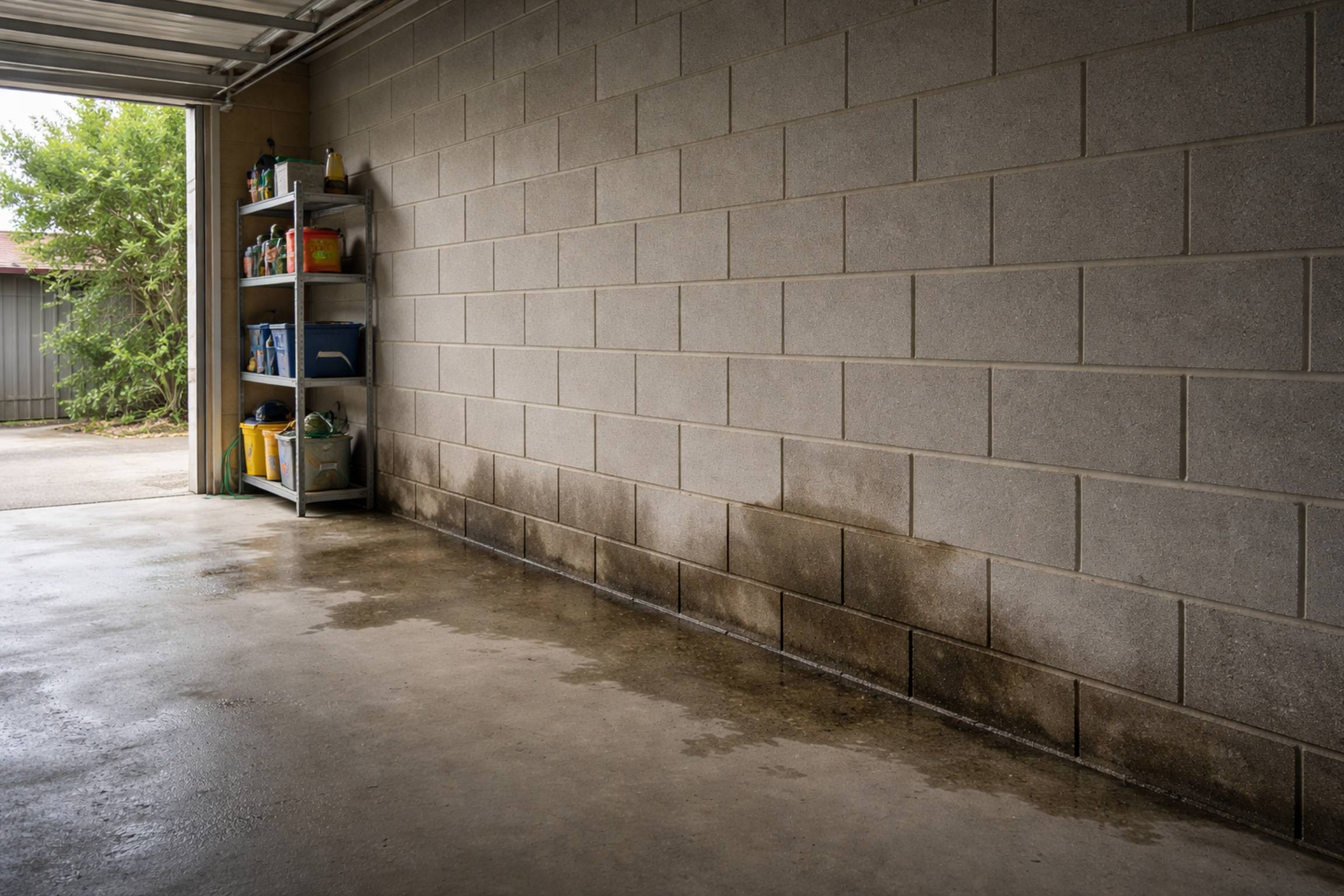

Common Signs of Garage Wall Water Ingress
Homeowners often notice one or more of the following:
- Water coming through the garage wall during or after rain
- Damp patches that appear low on the wall or at corners
- Dark staining or tide marks on blockwork or concrete
- White powdery residue (efflorescence) forming on the surface
- Musty smells or persistent moisture despite dry weather
These are not cosmetic issues. They are indicators of active moisture migration through the wall system.
Why Garage Walls Leak After Rain
1. Hydrostatic Pressure Behind the Wall
The most common cause of a leaking garage wall is hydrostatic pressure. When soil behind the wall becomes saturated during rainfall, water builds up and pushes against the structure. Concrete and masonry are not waterproof by default, so moisture is forced through pores, joints, and defects.
This pressure increases significantly where:
- The garage is below external ground level
- Drainage behind the wall is poor or non-existent
- The wall acts as a retaining structure
2. Porous Concrete or Blockwork
Concrete, besser blocks, and masonry are inherently porous materials. Over time, moisture can migrate directly through the wall, resulting in water seeping through concrete walls, even when no obvious cracks are visible.
This is especially common in:
- Older garages
- Unsealed blockwork
- Walls never treated with a waterproofing system
3. Cracks, Construction Joints, and Cold Joints
Small cracks, movement joints, or cold joints between slab and wall are prime entry points for water. These are often missed or underestimated but are a frequent source of leaks once water pressure builds up during rain events.
4. Failed or Missing External Waterproofing
In many cases, garages were never waterproofed externally during construction, or the original system has degraded over time. Once the structure is backfilled, external rectification becomes difficult or impractical, leaving internal waterproofing solutions as the most viable option.
Why Paint and “Quick Fixes” Don’t Work
A common mistake is attempting to fix the issue with:
- Standard wall paint
- Acrylic sealers
- Waterproof “coatings” not designed for hydrostatic pressure
These products are not designed to resist negative-side water pressure. They often fail quickly, trap moisture within the wall, or peel off entirely once water pressure increases.
If water is coming through the garage wall, the issue is not surface-level—it is structural moisture migration.
How Garage Wall Leaks Are Properly Addressed
The correct approach depends on the severity of the issue, wall construction, and access conditions, but typically involves:
- Thorough surface preparation and cleaning
- Crack and joint treatment using appropriate repair mortars or injection systems
- Application of a cementitious or negative-side waterproofing system designed to resist water pressure
- Integration with drainage considerations where possible
Importantly, not all garages require the same solution. What works for light dampness may be completely inadequate for active water ingress under pressure.
When a Waterproofing Assessment Is Recommended
If you’re experiencing persistent leaks, repeated failures, or are planning to finish or use the garage as a storage or habitable space, a professional waterproofing assessment is often the most cost-effective first step.
At H2O Supplies, we don’t just supply products—we also provide remedial waterproofing consultancy and reporting, including:
- Site-specific diagnosis of the leak source
- Identification of contributing factors such as drainage and construction detailing
- Clear, practical recommendations suitable for remedial works
- Documentation that can be used for builders, body corporates, or insurance discussions
This avoids guesswork and ensures the solution is appropriate for the conditions, not just a generic fix.
Products Commonly Used for Garage Wall Waterproofing
Depending on the situation, solutions may involve:
- Cementitious waterproofing systems
- Moisture barriers
- Repair mortars and crack treatments
- Primers and surface preparation products
These are typically applied as part of a system, not as standalone products.
Next Steps
If your garage wall is leaking after rain, addressing it early will reduce long-term damage and repair costs.
You can:
- Explore suitable waterproofing and repair products through the H2O Supplies store, or
- Engage us for a professional remedial waterproofing assessment if you need clarity before proceeding
Understanding the cause first is the key to fixing the problem properly.
